PRODUCT DETAILS

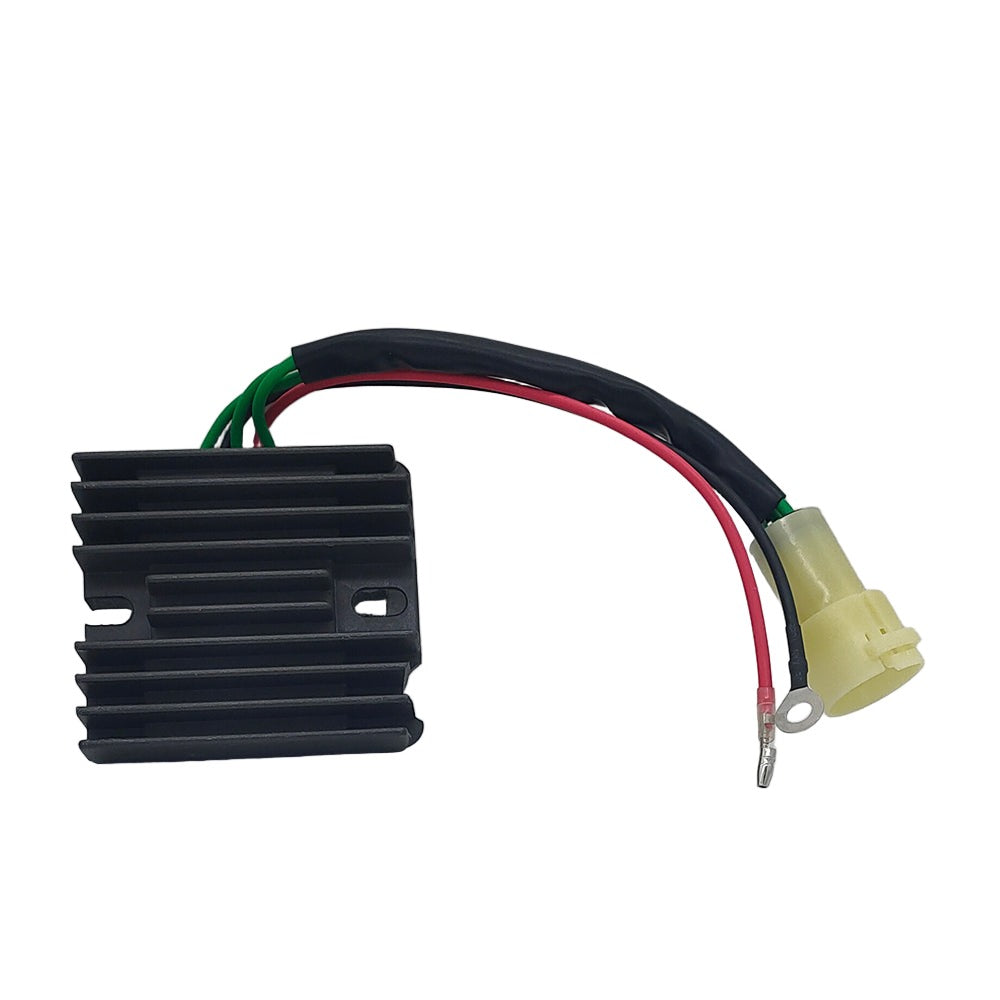

Voltage Regulator / Rectifier for Yamaha Outboards
High-quality marine-grade aftermarket voltage regulator / rectifier for selected Yamaha 75 HP, 80 HP, 90 HP and 100 HP 4-stroke outboard engines.
Designed as a replacement for the Yamaha 67F-81960 regulator family.
Suitable for selected:
- 75 HP – F75
- 80 HP – F80
- 90 HP – F90
- 100 HP – F100
- 4-Stroke
- Primarily earlier carburettor-generation applications
Yamaha and aftermarket catalogue data confirms the 67F-81960-12 regulator across selected F75/F80/F90/F100 applications.
Replaces Yamaha Part Numbers
- 67F-81960-00
- 67F-81960-00-00
- 67F-81960-10
- 67F-81960-10-00
- 67F-81960-11
- 67F-81960-11-00
- 67F-81960-12
- 67F-81960-12-00
Yamaha documentation confirms that 67F-81960-11 was revised to 67F-81960-12, and cross-reference catalogues also group -00, -10, -11 and -12 together.
Fits Selected Yamaha Outboards
75 HP
F75 – 4 Stroke
Selected earlier F75 applications.
80 HP
F80 – 4 Stroke
Selected applications including:
- F80A
- F80TLR
- F80TJR
Application information supports F80 models from approximately 1999–2006, depending on exact model and market.
90 HP
F90 – 4 Stroke
Selected earlier F90 applications including:
- F90A
- F90TLR
- F90TJR
100 HP
F100 – 4 Stroke
Selected applications including:
- F100A
- F100B
- F100C
Some catalogue data shows 67F-81960-12 continuing on selected F100 applications beyond the earlier F80 applications, so the exact model/serial number is more reliable than choosing by year alone.
Product Features
- Marine-grade aftermarket regulator / rectifier
- Suitable for selected Yamaha F75–F100 4-stroke outboards
- Replacement for 67F-81960-12
- Replaces earlier 67F-81960 regulator numbers
- Designed for the applicable Yamaha charging system
- Direct replacement for compatible applications
- New replacement component
- Quality aftermarket construction
⚠️ Important – Carburettor Models / Early Applications
This regulator is principally associated with the earlier F75/F80/F90/F100 4-stroke engine family.
It should NOT be assumed to fit every Yamaha 75 HP, 80 HP, 90 HP or 100 HP 4-stroke outboard.
Later engines and different engine generations can use completely different charging-system components.
Please check your original regulator part number before ordering.
Important – Check Before Purchasing
Please check:
- Engine horsepower
- Exact Yamaha model
- Engine serial number
- 4-stroke engine type
- Original regulator part number
- Electrical connectors
- Number of wires / plugs
- Physical mounting arrangement
Do not order by horsepower or appearance alone.
If the regulator looks the same as the one fitted to your engine, this does not always mean it is the correct regulator for your outboard.
The safest method is to match your original regulator part number to one of the references listed above.
If you are unsure, contact SSI Marine with your complete engine model and serial number before purchasing.
Additional Cross References
This regulator family is also cross-referenced to selected Mercury/Mariner 4-stroke applications because some engines share the Yamaha-derived electrical system.
Additional references include:
- 804278A12
- 804278T
- 804278T1
- 804278T11
Cross-reference data associates these numbers with the same Yamaha 67F-81960 regulator family, including selected Mercury 75/90 HP 4-cylinder carburettor applications.
Please Note
This listing is primarily advertised for the Yamaha applications above.
If purchasing for a Mercury or Mariner engine, please match the original part number and engine serial number before ordering.
Aftermarket Replacement Part
This is a high-quality marine-grade aftermarket replacement part.
It is not a genuine Yamaha component.
OEM manufacturer names and part numbers are provided for identification and compatibility reference only.
The regulator is designed as a compatible replacement for the applicable original Yamaha part numbers listed above.
Buyer Responsibility
It is the buyer's responsibility to confirm that the regulator is suitable for their particular engine before installation.
Electrical components can vary between engines of the same horsepower depending on:
- Model
- Year
- Serial number
- Charging system
- Engine generation
If you are unsure, please contact SSI Marine before purchasing.
Please provide your:
- Engine model
- Horsepower
- Serial number
- Original regulator part number
Our technical team will be happy to help.
