PRODUCT DETAILS

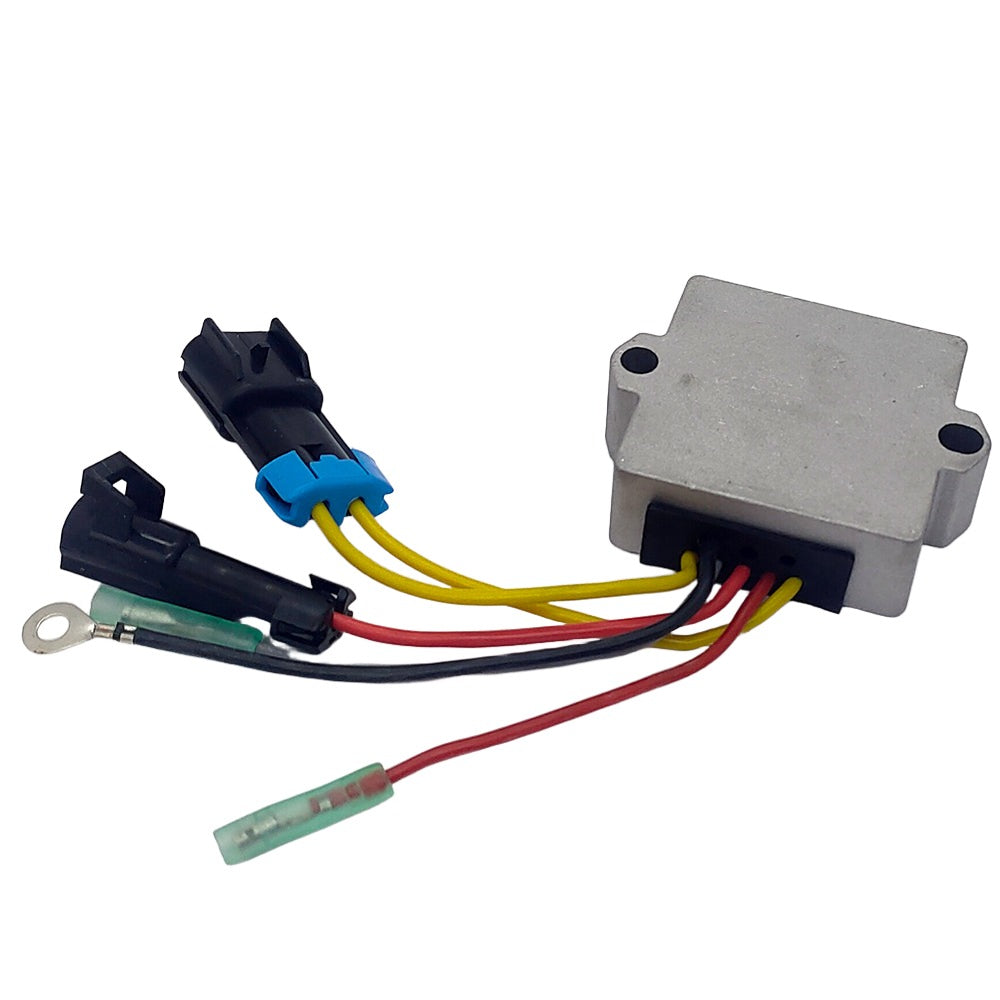

Voltage Regulator / Rectifier for Mercury & Mariner Outboards
High-quality marine-grade aftermarket voltage regulator / rectifier for selected Mercury and Mariner outboard engines.
Suitable for a range of selected 4-stroke and 2-stroke applications, including 25 HP FourStroke through to selected V6 models.
Replaces Mercury Part Numbers:
- 893640T01
- 893640001
- 893640-001
- 893640-002
- 854515T2
- 883071T1
- 883072T1
- 883072T2
- 830179T1
- 830179T2
The earlier 893640001 was superseded by 893640T01.
Fits Selected Mercury / Mariner Outboards
25 HP – 4 Stroke – 2 Cylinder
Selected:
25 HP – 2 Cylinder – 4 Stroke
Approx. 1999–2005
Mercury's service information identifies the 25 FourStroke application within the affected regulator family.
30 HP / 40 HP – 4 Stroke – 3 Cylinder
Selected:
- 30 HP – 3 Cylinder – 4 Stroke
- 40 HP – 3 Cylinder – 4 Stroke
Approx. 2002–2005
Includes selected electric-start and EFI applications.
40 HP / 50 HP / 60 HP – 4 Stroke – 4 Cylinder
Selected:
- 40 HP – 4 Cylinder – 4 Stroke
- 50 HP – 4 Cylinder – 4 Stroke
- 60 HP – 4 Cylinder – 4 Stroke
Approx. 2002–2007, depending on exact model and specification.
Mercury currently lists 893640T01 for selected 30–60 HP FourStroke 3- and 4-cylinder EFI, Racing, Jet, Formula and SeaPro applications.
Also Fits Selected V6 Applications
This regulator is also used on selected 2.5L V6 2-stroke Mercury / Mariner applications, including:
- 135 HP
- 140 HP Jet
- 150 HP
- 175 HP
- 200 HP
- 240 HP Sport Jet
Generally found on selected applications around 2000–2005, depending on the exact engine.
These V6 applications are 2-stroke, not 4-stroke. Cross-reference catalogues specifically identify V135, V140, V150/V150 EFI, V175 EFI, V200 EFI and XR6 240 EFI Jet applications for this regulator family.
Product Features
- Marine-grade aftermarket voltage regulator / rectifier
- Designed as a replacement for Mercury 893640T01
- Direct replacement for selected compatible applications
- Helps regulate charging-system voltage
- Suitable for selected Mercury and Mariner outboards
- Electrical connector configuration designed to correspond with the applicable regulator system
- Quality replacement for a failed or damaged regulator
⚠️ Important – Check Your Existing Regulator
Please do NOT order this regulator by horsepower alone.
Mercury and Mariner used different electrical and charging systems across engines of the same horsepower.
Before purchasing, please check:
- Engine horsepower
- 2-stroke or 4-stroke
- Number of cylinders
- Engine serial number
- Original regulator part number
- Electrical plug / connector
- Wiring configuration
Ideally, match your original part number to one of the references in this listing.
If the regulator looks the same as yours, this does not always mean it is the correct regulator for your outboard.
If unsure, please contact SSI Marine with your engine serial number and/or original regulator part number before ordering.
Important Information for Older Engines
Mercury issued service information regarding replacement of earlier voltage regulators in this family.
On some older engines, the installation depends on whether the engine already has the appropriate fuse harness fitted. Mercury's bulletin states that where the fuse harness is already installed, 893640001 can be used as the replacement regulator; engines without that harness may require additional components appropriate to the application.
Therefore:
If replacing an older regulator such as 883071T1, please check your existing wiring/fuse-harness arrangement before purchasing.
If you are unsure, send us your engine details and photographs of the existing regulator and connectors.
Replaces / Cross References
Mercury / Mariner:
893640T01
893640001
893640-001
893640-002
854515T2
883071T1
883072T1
883072T2
830179T1
830179T2
Additional Aftermarket Cross Reference:
Sierra 18-5732-1
CDI 194-2115K1
Sierra cross-reference information lists 893640T01 together with 893640-002, 893640-001, 883072T2, 830179T1 and 830179T2.
Aftermarket Replacement Part
This is a high-quality marine-grade aftermarket replacement, not a genuine Mercury / Quicksilver component.
OEM names and part numbers are provided for identification and compatibility reference only.
The replacement is designed for use in the applicable Mercury / Mariner applications listed above.
Buyer Responsibility
It is the buyer's responsibility to confirm that the part is suitable for their particular engine before installation.
Electrical components can vary considerably between engine generations.
Please check compatibility BEFORE purchasing.
If you are unsure, contact SSI Marine with:
- Engine make
- Horsepower
- Engine serial number
- Original regulator part number
We will be happy to help identify the correct component.
Why Buy From SSI Marine?
- Marine-grade aftermarket & OEM-spec parts
- Workshop-tested products
- More than 10 years supplying and working with outboard engines
- Same-day dispatch before 1 PM Monday–Friday
- Royal Mail Tracked 24
- UK stock
- Collection available from Leigh, Greater Manchester
- Technical support from experienced outboard specialists
- Workshop open Monday–Friday, 9 AM–5 PM
