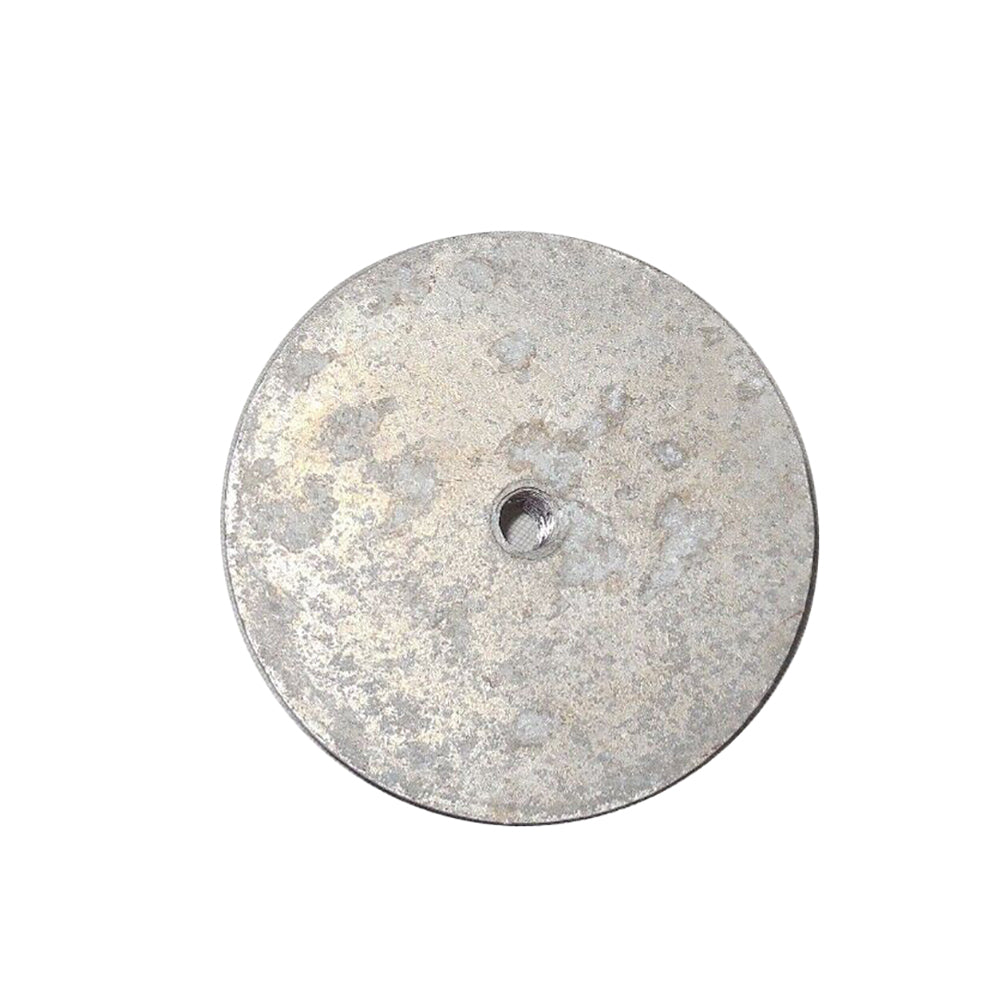

Marine-grade aftermarket flat, low-profile trim tab anode for selected 35–300 HP Mercury / Mariner outboards and MerCruiser Alpha One Gen II and Bravo sterndrives.

Designed to provide additional clearance for high-rake propellers where a conventional finned trim tab could interfere with the propeller.

Helps protect the gearbox and underwater metal components against galvanic corrosion.

Main Part Number: 76214-5

Available in Zinc or Aluminium.

Anode Material Options

Zinc

• Traditional sacrificial anode material

• Particularly suitable for saltwater applications

Aluminium

• Marine-grade aluminium alloy

• Suitable for saltwater and brackish water applications

• Lightweight alternative to zinc

Follow the engine manufacturer's recommendations when selecting anode material.

Fitment – Mercury / Mariner Outboards

Selected 35–300 HP models, including the following engine families and ratings where the correct trim tab mounting arrangement is fitted.

Mercury / Mariner 2-Stroke

• 35 HP – Selected 2-stroke models

• 40 HP – Selected 2-stroke models

• 45 HP – Selected 2-stroke models

• 50 HP – Selected 2-stroke models

• 60 HP – Selected 2-stroke models

• 70 HP – Selected 2-stroke models

• 75 HP – Selected 2-stroke models

• 80 HP – Selected 2-stroke models

• 90 HP – Selected 2-stroke models

• 100 HP – Selected 2-stroke models

• 115 HP – Selected 2-stroke models

• 125 HP – Selected 2-stroke models

• 135 HP – Selected V6 models

• 150 HP – Selected V6, EFI and Optimax models

• 175 HP – Selected V6, EFI and Optimax models

• 200 HP – Selected V6, EFI and Optimax models

• 225 HP – Selected V6, EFI and Optimax models

• 250 HP – Selected high-performance EFI models

• 300 HP – Selected high-performance models

Mercury / Mariner 4-Stroke

Selected models within the 35–300 HP range, including compatible:

• FourStroke

• EFI

• Verado

• Pro XS

Note: These are engine families and horsepower ratings within the general application range. They are not a guarantee that every version uses this anode.

Fitment – MerCruiser Sterndrives

Alpha One Generation II

• Alpha One Gen II

• Selected 1991-onwards drives

• Applications requiring additional clearance for high-rake propellers

Common engine combinations include:

• 3.0L / 3.0LX – 135–140 HP

• 4.3L / 4.3LX – 175–205 HP

• 5.0L / 5.0LX – 220–230 HP

• 5.7L / 350 MAG – Selected 250–300 HP applications

Bravo Drive Models

• Bravo One (Bravo I)

• Bravo Two (Bravo II)

• Bravo Three (Bravo III)

• Bravo X

• Bravo XR

• Bravo XZ

Important: MerCruiser compatibility is determined by the drive model and trim tab mounting arrangement, not engine horsepower alone.

Part Numbers and References

Main aftermarket reference

• 76214-5

Related Mercury / Quicksilver aluminium references

• 76214T5

• 76214Q5

These references identify the corresponding flat anode design. Check material and dimensions when comparing parts.

Product Specifications

• Product: Flat Trim Tab / Anodic Plate

• Material: Zinc or Aluminium

• Diameter: 3-1/2 inches (approximately 89 mm)

• Threaded Mounting Hole: 7/16"-14 UNC

• Approximate Zinc Weight: 0.5 lb (227 g)

• Approximate Aluminium Weight: 0.3 lb (136 g)

• Application: Mercury / Mariner Outboard and MerCruiser Sterndrive

• Purpose: Sacrificial corrosion protection and additional propeller clearance

• Quantity: 1 anode

Package Includes

1 × Flat Trim Tab Anode

Choose:

• Zinc

• Aluminium

Mounting bolt sold separately.

Important Compatibility Information

Please confirm:

• Engine horsepower, model and serial number

• Gearbox or sterndrive model

• Original trim tab configuration

• Diameter and mounting thread

• Propeller clearance

• Required anode material

If the part looks the same as yours, this does not always mean it is the correct part for your outboard or sterndrive.

A flat anode does not provide the steering torque adjustment of a finned trim tab.
