PRODUCT DETAILS

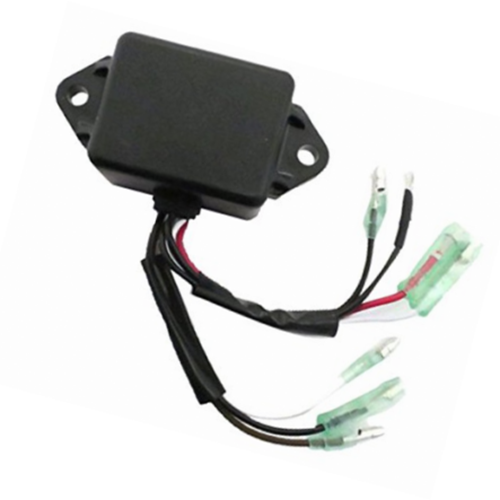

Yamaha 9.9 HP 15 HP 20 HP 25 HP CDI Unit / Ignition Module / Power Pack
Premium-quality aftermarket CDI ignition unit / power pack for selected Yamaha 9.9 HP, 15 HP, 20 HP and 25 HP 2-stroke outboard engines.
Designed as a replacement for the Yamaha 695-85540 CDI family, including:
695-85540-11-00
Also replaces TIA01-36 and several earlier/later versions of the same Yamaha ignition unit.
The 695-85540-11 family is used on selected Yamaha 2-cylinder, 2-stroke outboards.
Fits Selected Yamaha Outboards
9.9 HP
- 2 Stroke
- 2 Cylinder
- Selected 1984/1986–1995 applications
15 HP
- 2 Stroke
- 2 Cylinder
- Selected 1984/1986–1995 applications
20 HP
- 2 Stroke
- 2 Cylinder
- Selected 1985–2002 applications
25 HP
- 2 Stroke
- 2 Cylinder
- Selected 1985–2002 applications
Including selected:
- C20
- C25
- CV25
Application data specifically identifies C20 1992–1997, C25 1992–1997 and CV25 1990 within this ignition family.
Also Listed for Selected E40 Applications
Your existing application information also identifies:
E40 – 2003
Because the E40 application is separate from the normal 9.9–25 HP family, we strongly recommend confirming the existing CDI part number before ordering this unit for an E40.
Replaces Yamaha Part Numbers
- 695-85540-10
- 695-85540-10-00
- 695-85540-11
- 695-85540-11-00
- 695-85540-11/12
- 695-85540-12
- 695-85540-12-00
- 695-85540-1200
- 695-85540-13
Also Cross-References:
- TIA01-36
- Sierra 18-5131
CDI Electronics specifically cross-references TIA01-36, 695-85540-10-00, 695-85540-11-00 and 695-85540-12-00 with its 117-695-11 two-cylinder ignition pack.
Important – Check Your Existing CDI
Please check the CDI fitted to your engine BEFORE ordering.
Yamaha used different ignition units across engines with similar horsepower and year ranges.
Your existing unit should correspond with one of the listed 695-85540 references or TIA01-36.
Please compare:
- CDI part number
- Electrical connections
- Wire colours/configuration
- Number of wires
- Mounting points
- Engine model
- Engine year
Do not order by horsepower alone.
What Does the CDI Unit Do?
The CDI – Capacitor Discharge Ignition – unit is an important component of the outboard ignition system.
It controls the electrical discharge used to trigger the ignition coils and produce spark at the correct time.
A faulty CDI can potentially cause symptoms including:
- No spark
- Intermittent spark
- Loss of spark on one cylinder
- Difficult starting
- Engine cutting out
- Poor running
- Irregular ignition
IMPORTANT
These symptoms do not automatically mean the CDI is faulty.
Similar symptoms can be caused by the stator/charge coil, pulser/trigger coil, ignition coils, wiring, stop circuit, connections or poor grounds.
We strongly recommend correctly diagnosing the ignition system before replacing the CDI.
Product Features
- Premium-quality aftermarket CDI unit
- CDI / ignition module / power pack
- Yamaha outboard application
- 9.9 HP
- 15 HP
- 20 HP
- 25 HP
- Selected E40 application
- 2 Stroke
- 2 Cylinder
- Replaces 695-85540-11-00
- Replaces 695-85540-10-00
- Replaces 695-85540-12-00
- Replaces 695-85540-13
- Replaces TIA01-36
- Marine-grade replacement component
- UK stock
⚠️ Important – Electrical Part
PLEASE DIAGNOSE THE ENGINE BEFORE ORDERING.
CDI units are frequently replaced when the actual ignition fault is caused by another component.
Before replacing the CDI, the relevant:
- Charge/stator coils
- Pulser/trigger components
- Ignition coils
- Stop circuit
- Wiring
- Connections
- Engine grounds
should be checked as appropriate.
⚠️ Electrical Parts Returns
Please check compatibility carefully before opening, connecting or installing the CDI unit.
Electrical components that have been installed, connected or used cannot simply be returned as unused parts, as installation can make it impossible to establish their condition or whether another electrical fault has damaged them.
This does not affect your statutory rights where an item is faulty.
If you are unsure about compatibility, please contact SSI Marine before installation.
Important – Please Check Compatibility
Before purchasing, please confirm:
- Yamaha outboard
- Exact horsepower
- 2-stroke application
- Engine model
- Engine year
- Existing CDI part number
- Electrical connections
- Mounting arrangement
The safest identification method is the existing CDI part number.
If the CDI looks the same as yours, this does not always mean it is the correct one for your outboard.
If you are unsure, please send SSI Marine your engine model, serial number and clear pictures of the existing CDI and connections before purchasing.
