115 HP 130 HP 150 HP 175 HP 200 HP 225 HP Yamaha Outboard 2 Stroke Voltage Regulator Rectifier 6R3-81960-10
PRODUCT DETAILS

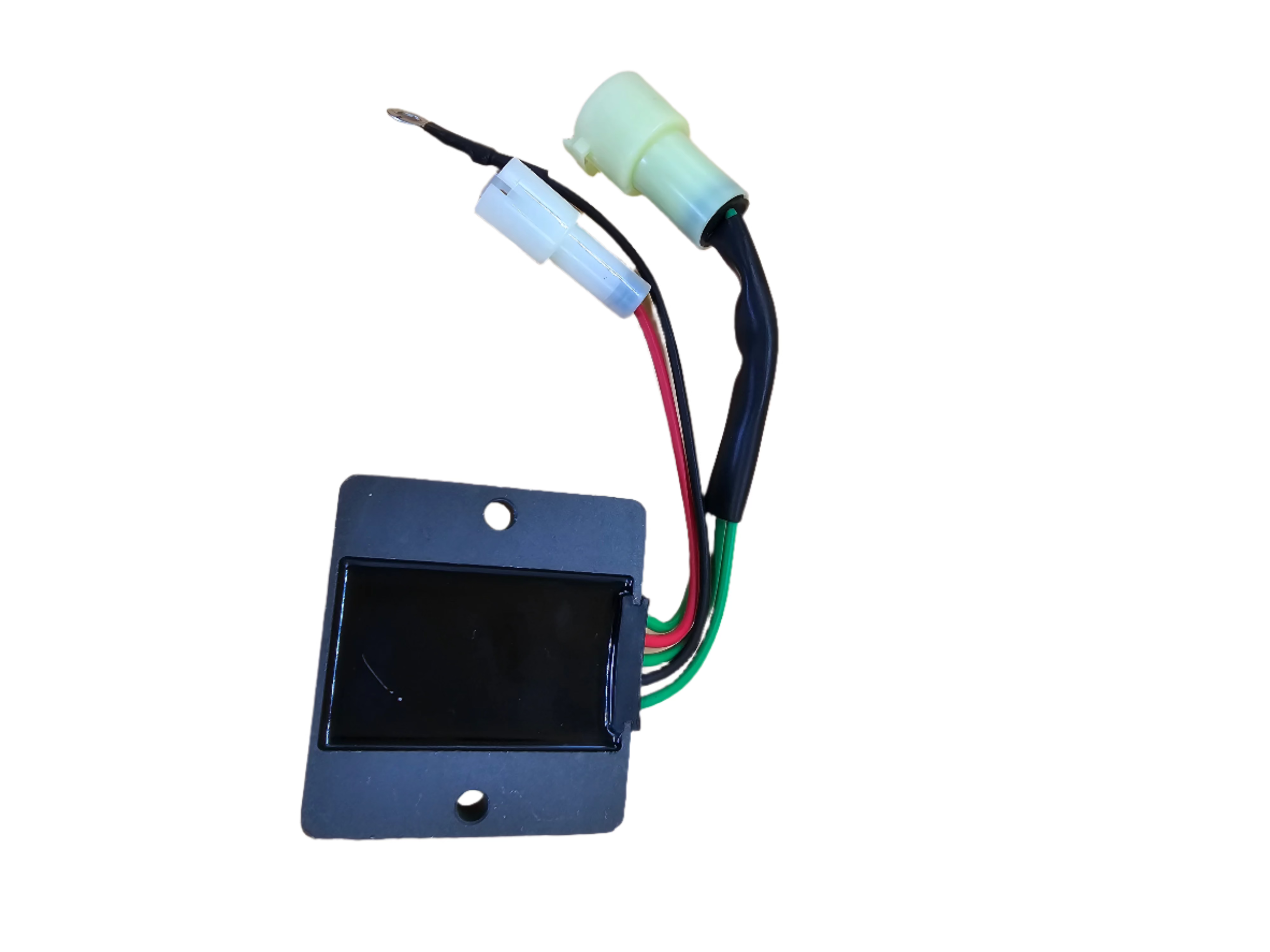

Voltage Regulator / Rectifier for Yamaha Outboards
High-quality marine-grade aftermarket voltage regulator / rectifier for selected Yamaha 115 HP to 225 HP 2-stroke outboard engines.
Designed as a replacement for the Yamaha 6R3-81960 regulator family.
Suitable for selected:
- 115 HP – 2 Stroke
- 130 HP – 2 Stroke
- 150 HP – 2 Stroke
- 175 HP – 2 Stroke
- 200 HP – 2 Stroke
- 225 HP – 2 Stroke
Replaces Yamaha Part Numbers
- 6R3-81960-00
- 6R3-81960-00-00
- 6R3-81960-10
- 6R3-81960-10-00
CDI's application catalogue cross-references 6R3-81960-00-00 and 6R3-81960-10-00 to the same regulator family.
Fits Selected Yamaha 2-Stroke Outboards
115 HP – 4 Cylinder
Selected 115 HP 2-stroke applications.
Includes selected models from the 115/B115/C115 engine families.
Approx. 1990 onwards, depending on exact model and specification.
130 HP – 4 Cylinder
Selected 130 HP 2-stroke applications.
Includes selected:
- 130
- L130
- 130B
Approx. 1990 onwards, depending on exact model.
CDI identifies the 6R3 regulator family for selected 115 HP and 130 HP 4-cylinder engines from 1990–2005.
150 HP – V6
Selected 150 HP 2-stroke V6 applications.
Includes selected:
- 150
- L150
- P150
- V150
- D150
Yamaha's own parts catalogue shows 6R3-81960-10 fitted to 150F applications.
175 HP – V6
Selected 175 HP 2-stroke V6 applications.
Includes selected:
- 175
- P175
- S175
- V175
Yamaha parts data also confirms 6R3-81960-10 on 175-series applications.
200 HP – V6
Selected 200 HP 2-stroke V6 applications.
Includes selected:
- 200
- L200
- P200
- S200
- ProV 200
Yamaha parts catalogues show 6R3-81960-10 on 200-series engines, including applications beyond the 1999 cut-off in your old advert.
225 HP – V6
Selected 225 HP 2-stroke V6 applications.
Yamaha's 225DET parts catalogue specifically identifies 6R3-81960-10 as the rectifier/regulator assembly.
Fitment Summary
| Horsepower | Engine Type | Cylinders |
|---|---|---|
| 115 HP | 2 Stroke | 4 |
| 130 HP | 2 Stroke | 4 |
| 150 HP | 2 Stroke | V6 |
| 175 HP | 2 Stroke | V6 |
| 200 HP | 2 Stroke | V6 |
| 225 HP | 2 Stroke | V6 |
Important
The above is a fitment guide only.
This does not mean every Yamaha 115–225 HP 2-stroke uses this regulator.
Different regulator/rectifier assemblies were used depending on model, year, specification and electrical system.
Product Features
- Marine-grade aftermarket voltage regulator / rectifier
- Suitable for selected Yamaha 2-stroke outboards
- Applications from 115 HP to 225 HP
- Suitable for selected 4-cylinder and V6 engines
- Replacement for Yamaha 6R3-81960-10
- Helps regulate charging-system voltage
- Rectifies charging-system AC output to DC
- Designed as a replacement for the applicable original unit
- New replacement component
⚠️ Important – Check Before Ordering
Do NOT order this regulator by horsepower or appearance alone.
Yamaha used different regulator and charging-system configurations across engines with the same horsepower.
Before purchasing, please check:
- Exact Yamaha engine model
- Horsepower
- 2-stroke engine type
- Number of cylinders
- Engine serial number
- Original regulator part number
- Electrical plugs/connectors
- Wiring configuration
- Mounting arrangement
Match the part number whenever possible.
If the regulator looks the same as the one fitted to your engine, this does not always mean it is the correct regulator for your outboard.
If unsure, contact SSI Marine with your complete engine model and serial number before ordering.
Important When Replacing a Failed Regulator
A failed regulator can sometimes be caused by another charging-system or wiring problem.
Before fitting a replacement, we recommend checking the condition of:
- Stator output
- Battery and battery connections
- Earth/ground connections
- Wiring
- Connectors
- Fuse and fuse holder
- Any overheated, melted or corroded terminals
Do not install a new regulator onto damaged or badly corroded electrical connections.
Aftermarket Replacement Part
This is a high-quality marine-grade aftermarket replacement part.
It is not a genuine Yamaha component.
OEM manufacturer names and part numbers are provided for identification and compatibility reference only.
The item is designed as a replacement for the applicable Yamaha part numbers listed above.
Buyer Responsibility
It is the buyer's responsibility to ensure this part is suitable for their particular outboard before installation.
Please check compatibility using your engine model, serial number and original regulator part number.
If you are unsure, contact SSI Marine before ordering. Our technical team will be happy to help identify the correct part.
Why Buy From SSI Marine?
- Marine-grade aftermarket & OEM-spec parts
- Workshop-tested products
- More than 10 years supplying and working with outboard engines
- Same-day dispatch before 1 PM Monday–Friday
- Royal Mail Tracked 24
- UK stock
- Collection available from Leigh, Greater Manchester
- Technical support from experienced outboard specialists
- Workshop open Monday–Friday, 9 AM–5 PM
