White / BlackMarine Tachometer 0-7000 RPM with Digital Hour Meter & 4 LED Alarms for Outboard Inboard
PRODUCT DETAILS

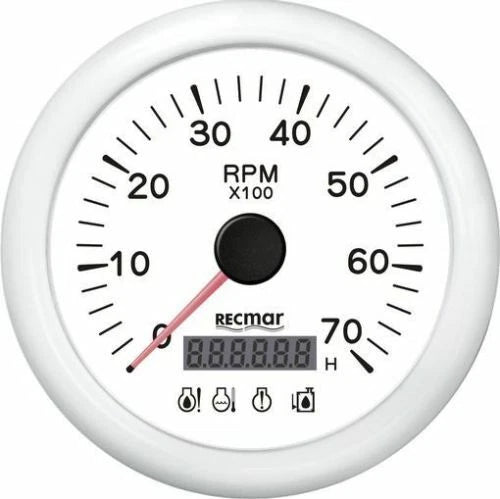

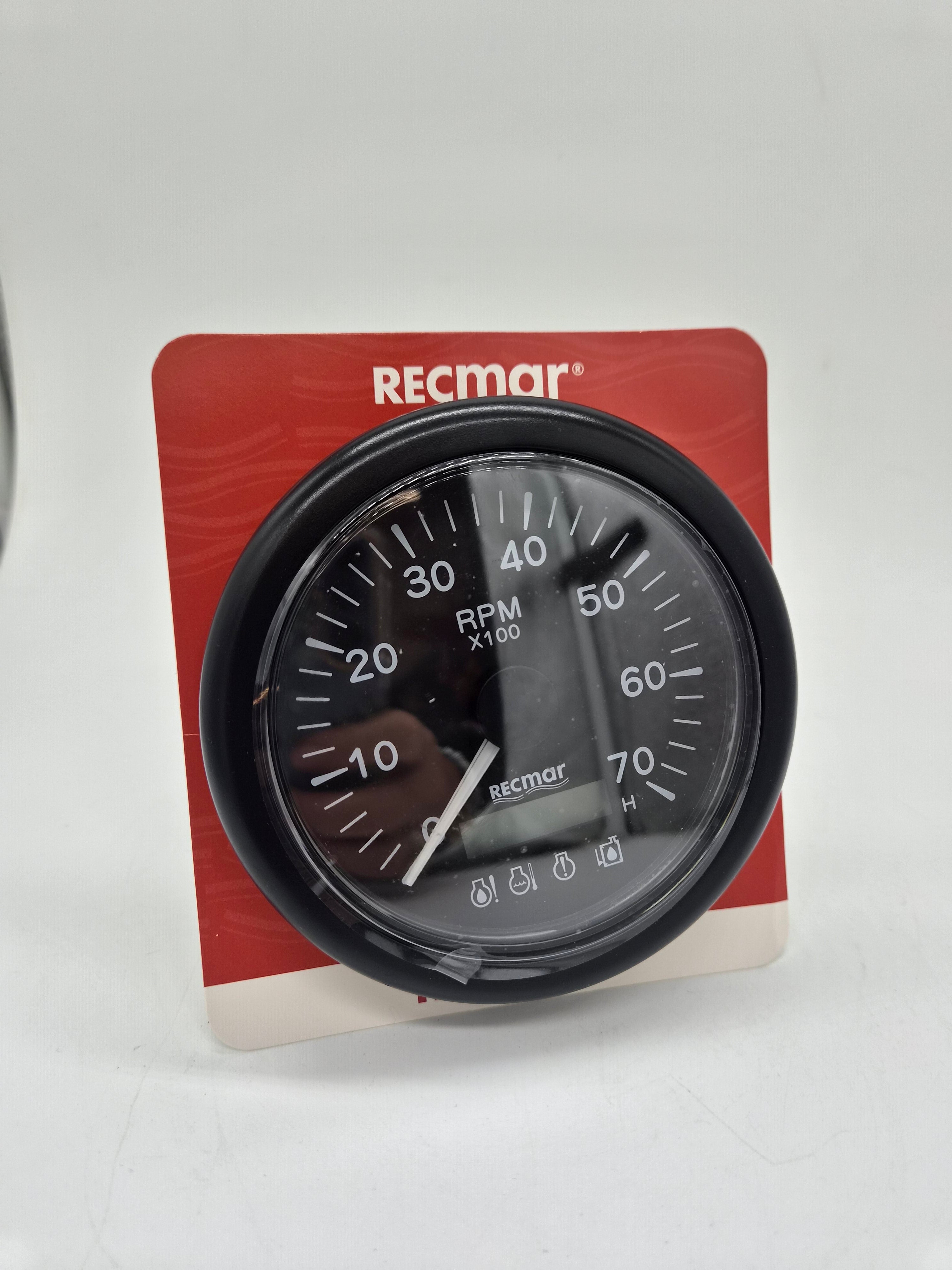

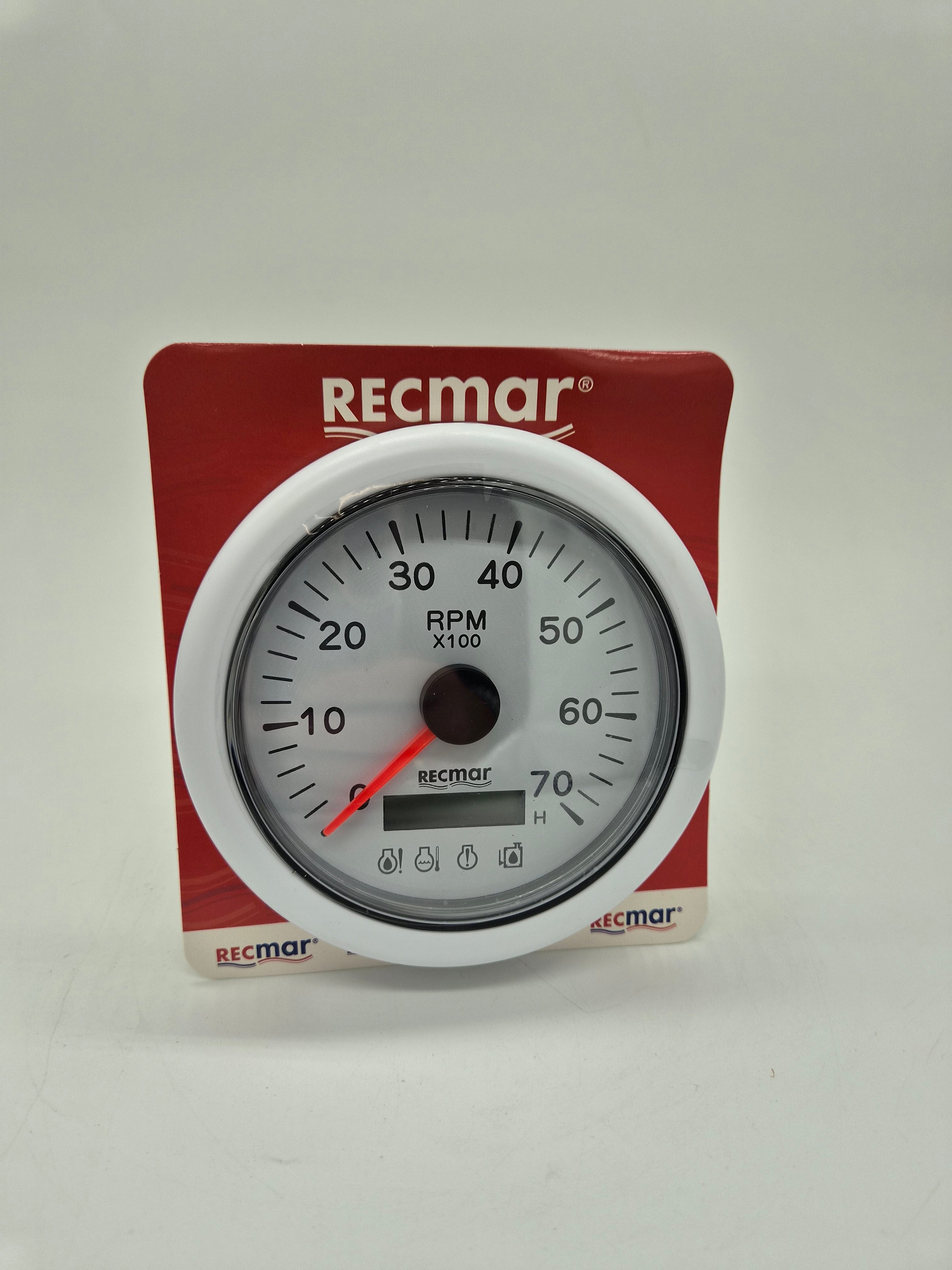

Marine Tachometer with Digital Hour Meter & 4 LED Alarm Indicators
Stylish universal marine tachometer / rev counter suitable for a wide range of outboard and inboard engines.
The gauge displays engine speed from 0–7000 RPM and incorporates a convenient LCD digital hour meter, allowing you to monitor both engine RPM and running hours from a single instrument.
It also features 4 LED alarm indicators and a choice of red or yellow backlighting to complement your dashboard or existing marine instruments.
Main Specifications
- RPM Range: 0–7000 RPM
- Digital LCD Hour Meter
- 4 LED Alarm Indicators
- Gauge Diameter: 85 mm / 3-3/8"
- White face / background
- Black markings and numbers
- Choice of Red or Yellow backlight
- Marine application
- Universal-style fitment
- Installation / fitting instructions included
- New
Compatible Outboard Brands
Designed for use with many popular outboard applications, including selected:
- Yamaha
- Mercury
- Mariner
- Johnson
- Evinrude
- Suzuki
- Honda
- Tohatsu
Also suitable for compatible inboard marine engine applications.
Please check your engine's tachometer signal and wiring compatibility before purchasing.
0–7000 RPM Tachometer
The gauge provides a clear engine-speed reading from:
0 to 7000 RPM
This range is suitable for many common marine outboard and inboard engine applications.
The large white face with contrasting black markings provides excellent visibility while underway.
Built-In Digital Hour Meter
A convenient LCD digital hour meter is incorporated directly into the tachometer.
Keeping track of engine running hours can help with scheduling routine maintenance such as:
- Engine oil changes
- Gearbox oil changes
- Impeller servicing
- Spark plug replacement
- Fuel filter replacement
- General engine servicing
No need to install a separate hour meter on the dashboard.
4 LED Alarm Indicators
The tachometer also incorporates 4 LED warning / alarm indicators, providing additional functionality in a single compact marine gauge.
Alarm functionality depends on the engine and correct wiring connections. Please check compatibility with your engine's warning system.
Dual Backlight – Red or Yellow
Choose between two backlight colours:
- Red
- Yellow

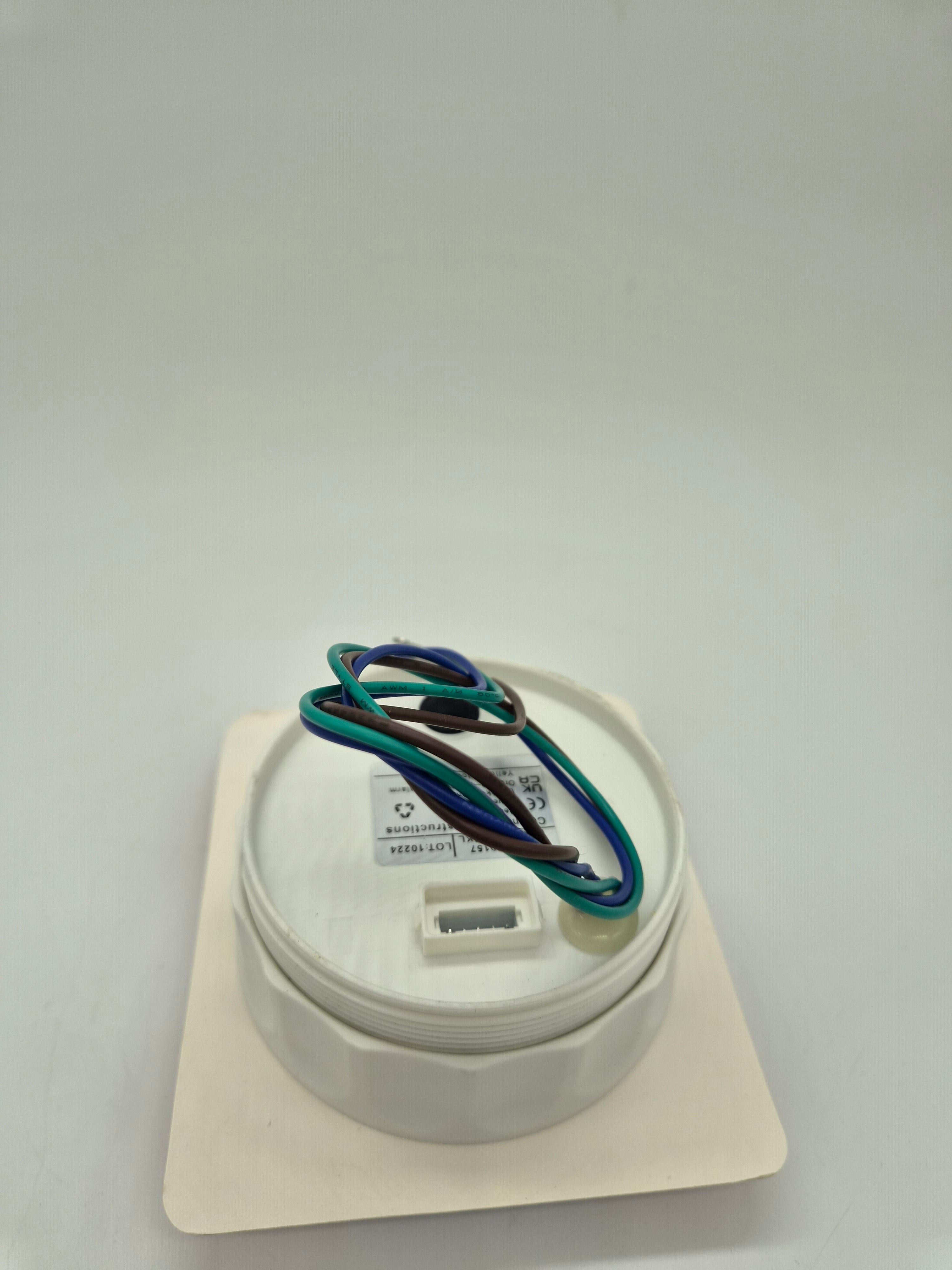

Simply connect your preferred backlight wire into the appropriate dashboard lighting circuit according to the supplied fitting instructions.
This allows the gauge to better match your existing dashboard and instruments.
Installation Size
Gauge Diameter
Ø85 mm / 3-3/8"
Please measure your existing gauge/dashboard opening before ordering.

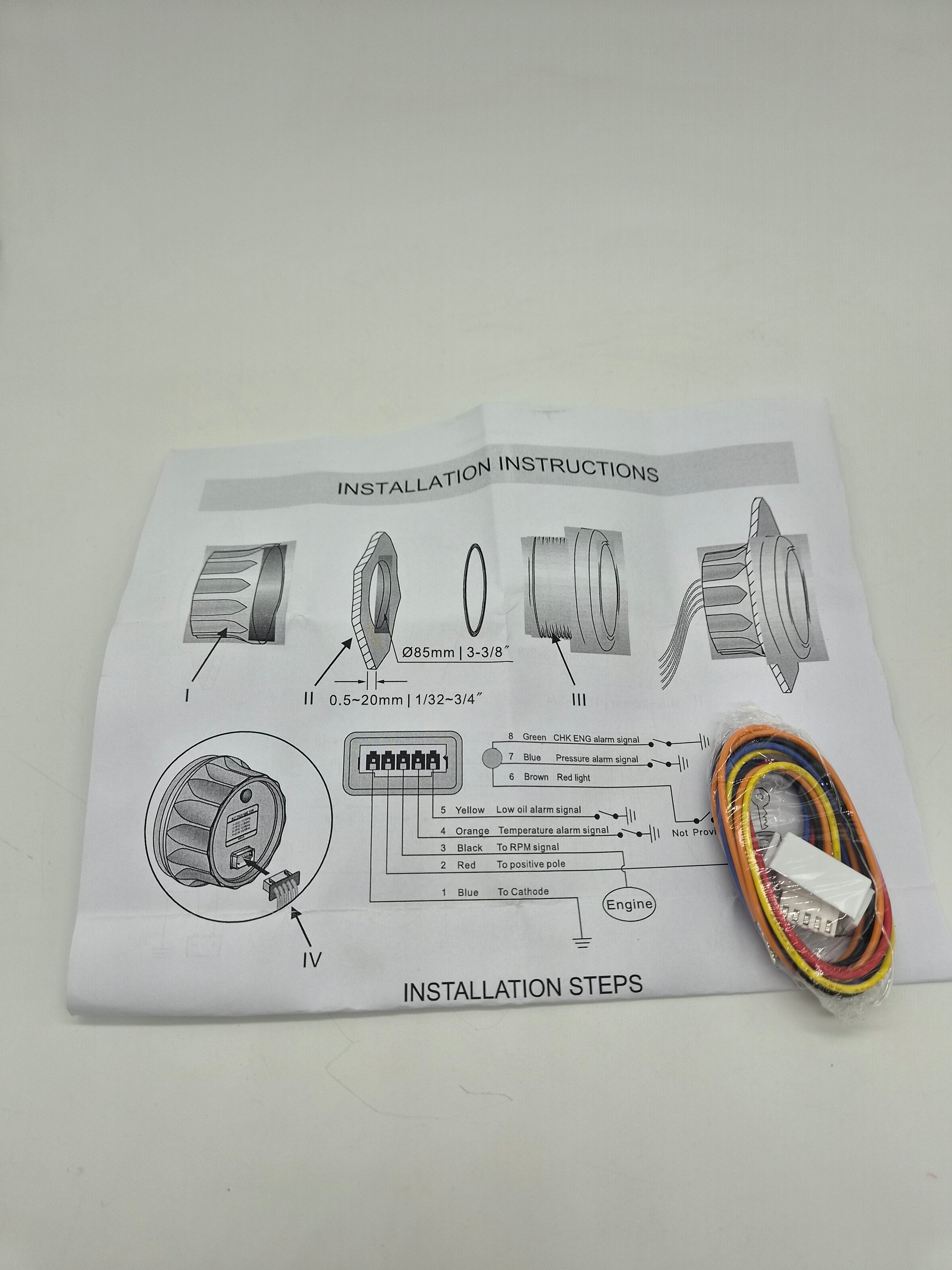

Fitting instructions are included.
Important – Universal Does Not Mean Every Engine
This is a universal-style marine tachometer, but tachometer signals and warning systems vary between engine manufacturers and models.
Please check compatibility before purchasing, particularly:
- Tachometer signal type
- Engine pole/pulse configuration
- Wiring connections
- Alarm/warning connections
- Dashboard cut-out dimensions
If you are unsure, please contact us with your engine make, model and year before ordering.
