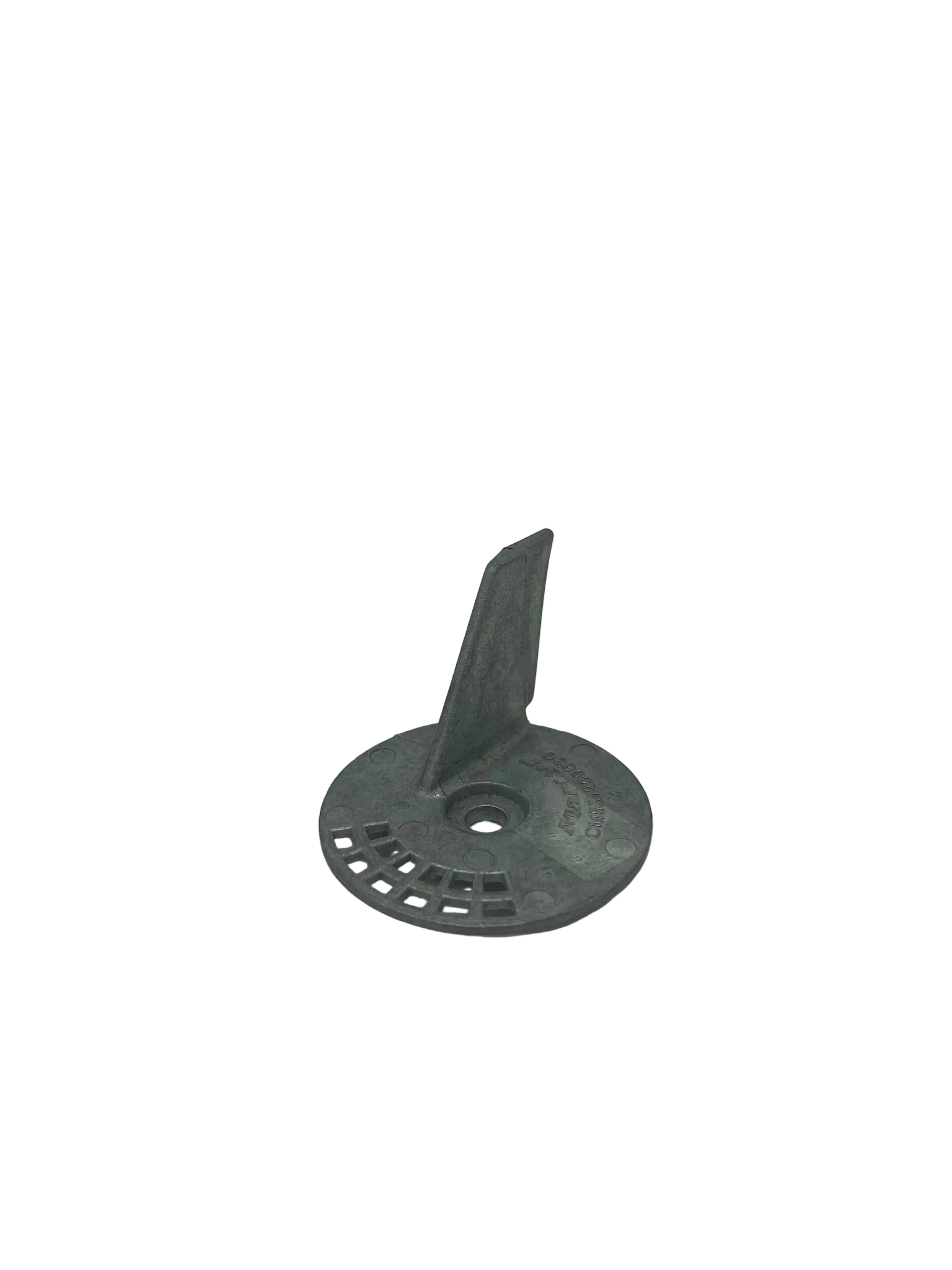

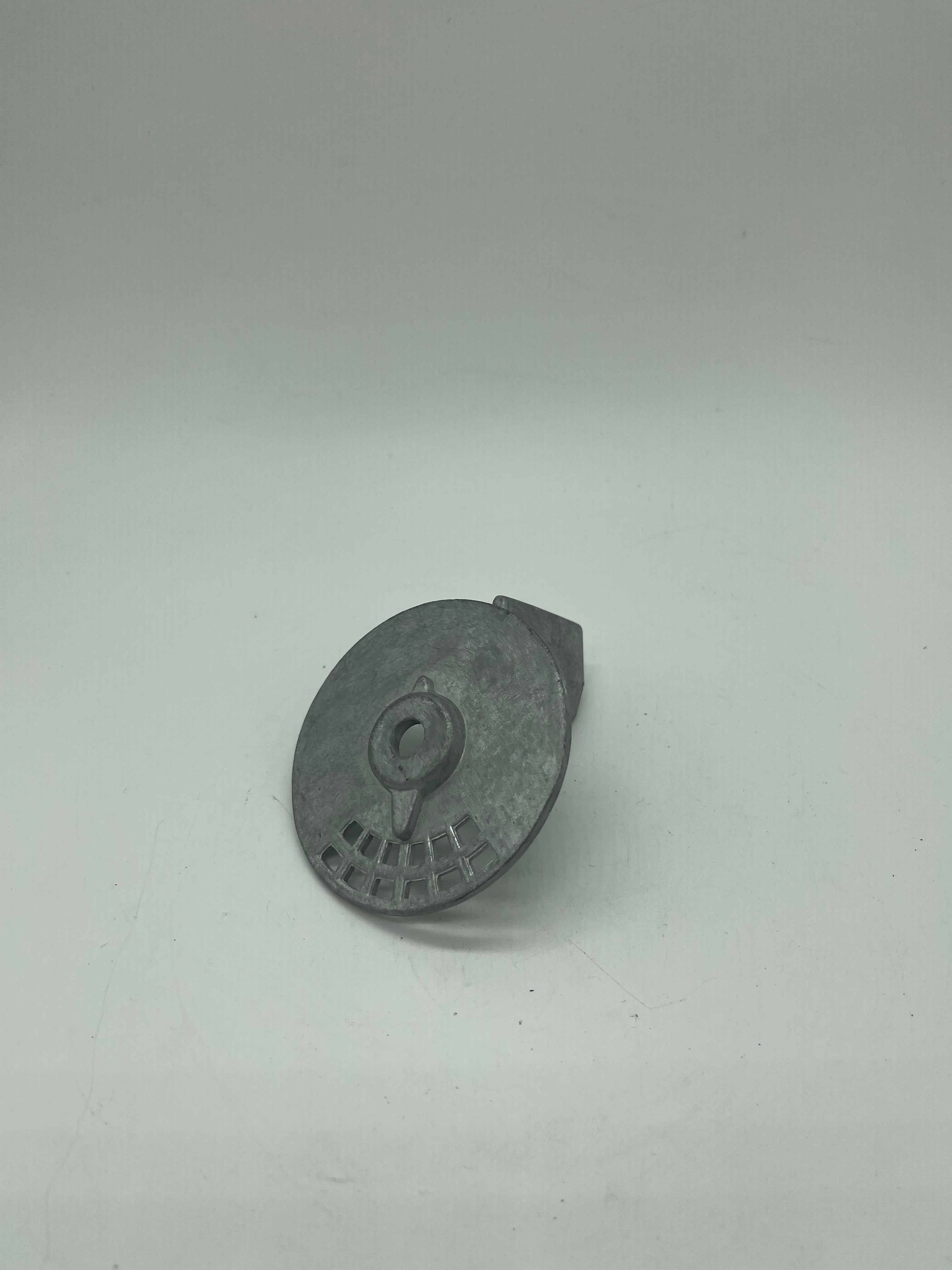

20 HP 25 HP 30 HP 35 HP Suzuki Outboard Trim Tab Anode 55125-96310 – Zinc / Aluminium

Marine-grade aftermarket trim tab sacrificial anode for selected Suzuki 20 HP, 25 HP, 30 HP and 35 HP outboards.

Suitable for selected Suzuki DT20, DT25, DT25C, DT30, DT30C, DT35, DF25 and DF30 engines using part number 55125-96310.

Available in Zinc or Aluminium.

Choose Your Anode Material

Zinc

Traditional sacrificial anode material, particularly suitable for saltwater use.

Aluminium

Marine-grade sacrificial anode suitable for saltwater and brackish water applications.

Fitment

Fits selected Suzuki 2-stroke and 4-stroke outboards:

Suzuki 2-Stroke

• 20 HP – DT20: 1986–1987

• 25 HP – DT25: 1983–1987

• 25 HP – DT25C: 1989–2000

• 30 HP – DT30: 1983–1987

• 30 HP – DT30C: 1988–1992

• 35 HP – DT35: 1987–1989

Suzuki 4-Stroke

• 25 HP – DF25: 2000–2010

• 25 HP – DF25 V-Twin: 2006 onwards, selected models

• 30 HP – DF30: 2000–2010

Some parts catalogues also list selected DF25A / DF30A applications. Please confirm the original part number before ordering for these later models.

Replaces Suzuki Part Numbers

• 55125-96310

• 5512596310

Additional related references, subject to application:

• 55125-96302

• 55125-96301

OEM part numbers are used for identification purposes only.

Product Details

• Trim tab / gearbox sacrificial anode

• Available in Zinc or Aluminium

• Suzuki 20 / 25 / 30 / 35 HP

• Selected 2-stroke and 4-stroke applications

• Approx. 70 mm diameter

• Approx. 82 mm overall length

• Approx. 48 mm overall height

• Approx. 8.5 mm mounting hole

• Helps protect the gearbox against galvanic corrosion

• Marine-grade aftermarket replacement

• Price is for ONE anode

Package Includes

1 × Trim Tab Anode

Material supplied according to selected variant:

• Zinc

• Aluminium

Mounting bolt not included unless otherwise specified.

Important Compatibility Information

This anode does not fit every Suzuki 20–35 HP outboard.

Suzuki used different trim tab anodes depending on the exact engine model, production year and gearbox configuration.

Before ordering, please check:

• Exact engine model

• Engine year

• Engine serial number

• Original Suzuki part number

• Existing anode shape and mounting dimensions

If the part looks the same as yours, this does not always mean it is the correct part for your outboard.

If unsure, send us your engine model and serial number and we can help confirm compatibility.

Why Buy From SSI Marine?

• Workshop-tested aftermarket & OEM-spec parts

• UK stock

• Same-day dispatch before 1 PM Mon–Fri

• Royal Mail Tracked 24

• Collection available from Leigh, Greater Manchester

• Technical support available

Buyer Responsibility

Please confirm compatibility with your exact engine model, year and serial number before purchase.
