PRODUCT DETAILS

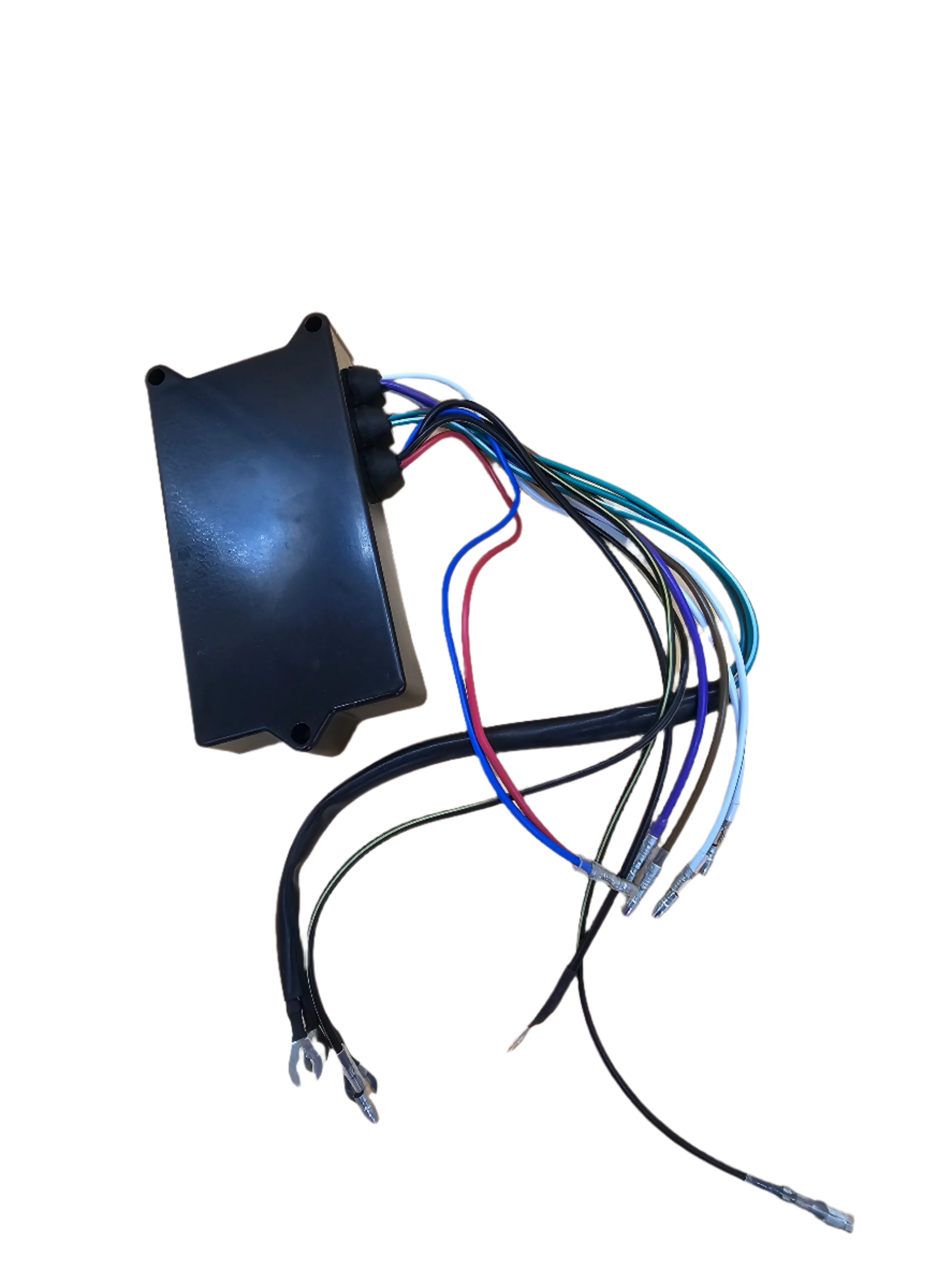

CDI Unit / Power Pack / Switch Box for Mercury & Mariner Outboards
High-quality marine-grade aftermarket CDI ignition unit / power pack / switch box for selected Mercury and Mariner 3-cylinder 2-stroke outboard engines.
Designed for selected:
75 HP / 90 HP Mercury & Mariner Outboards
and selected:
65 Jet / 95 SportJet Applications
primarily from approximately 1994–1997, depending on the exact model and serial number.
This is the 3-cylinder switch-box family cross-referenced to:
18495A26 / CDI 114-4953
Fits Selected Mercury / Mariner Outboards
65 Jet
Selected 65 Jet 3-cylinder 2-stroke applications.
Common application period:
Approx. 1994–1997
75 HP
Selected 75 HP 3-cylinder 2-stroke Mercury / Mariner outboards.
Your existing application data includes:
Serial Number:
0D283222 – 0G437999
Approximate application:
1994–1996
90 HP
Selected 90 HP 3-cylinder 2-stroke Mercury / Mariner outboards.
Your existing application data includes:
Serial Number:
0C222000 – 0G437999
Approximate application:
1993–1996
Also selected applications within:
0E080400 – 0E145579
Approx. 1995–1996
95 SportJet
Selected Mercury:
95 HP SportJet
3-cylinder 2-stroke applications.
Your existing application data includes:
Serial Number:
0E141089 – 0E315900
Approximate application:
1995–1997
Fitment Summary
| Application | Engine | Approx. Period |
|---|---|---|
| 65 Jet | 3 Cyl 2 Stroke | Selected 1994–1997 |
| 75 HP | 3 Cyl 2 Stroke | Selected 1994–1996 |
| 90 HP | 3 Cyl 2 Stroke | Selected 1993–1996 |
| 95 SportJet | 3 Cyl 2 Stroke | Selected 1995–1997 |
⚠️ IMPORTANT
These year ranges are provided as a fitment guide only.
Please do NOT order by horsepower or year alone.
Mercury and Mariner used several different ignition systems depending on model and serial number.
Replaces Mercury / Mariner Part Numbers
- 18495A10
- 18495A12
- 18495A15
- 18495A18
- 18495A19
- 18495A26
Main Current Cross Reference
18495A26
The earlier 18495A12 switch box is documented as being superseded through 18495A19 to 18495A26.
Additional Cross References
- CDI Electronics 114-4953
- Sierra 18-5790
- Sierra 18-5790-1
- Mallory 9-25107
The former CDI Electronics 114-4953 is now cross-referenced to Sierra 18-5790-1.
OEM manufacturer names and part numbers are provided for identification and compatibility reference only.
3-Cylinder Switch Box
This CDI is specifically from the:
3-CYLINDER 18495 / 114-4953 SWITCH-BOX FAMILY
The Mercury parts catalogue also shows 18495A12 → 18495A19 → 18495A26 as switch-box replacements on applicable 3-cylinder ignition systems.
Do not confuse this with other 18495 switch boxes.
Mercury used similar-looking 18495-series CDI units for different engines and cylinder configurations.
For example, CDI cross-reference information identifies:
- 18495A10 / A12 / A18 / A19 / A26 → 3-cylinder 114-4953 family
- Other 18495 references → different 2-cylinder or 6-cylinder CDI units.
⚠️ IMPORTANT – Check Before Ordering
Please check your existing CDI / switch box before purchasing.
Confirm:
- Engine horsepower
- Complete engine serial number
- 3-cylinder engine
- 2-stroke engine
- Original switch-box part number
- Electrical connections
- Wiring arrangement
- Mounting arrangement
Ideally, your original CDI should cross-reference to:
18495A10
18495A12
18495A15
18495A18
18495A19
or
18495A26
3-Bolt Mounting
This switch box is secured to the applicable electrical mounting panel using:
3 Mounting Bolts
Mercury parts information for the applicable ignition assembly identifies three mounting screws for the switch-box installation.
Please compare the mounting arrangement and electrical connections with your existing unit before ordering.
⚠️ Appearance Does Not Confirm Fitment
If the CDI looks the same as the one fitted to your engine, this does not always mean it is the correct part for your outboard.
Different Mercury / Mariner switch boxes can look almost identical but have different:
- Internal specifications
- Cylinder applications
- Wiring
- Electrical connections
- Ignition characteristics
Always check the original part number and complete engine serial number.
What Is a CDI / Switch Box?
The CDI / switch box is an important part of the Mercury / Mariner ignition system.
It receives electrical signals from the ignition system and controls the output used to fire the ignition coils.
A faulty CDI / switch box can be associated with symptoms such as:
- No spark
- Loss of spark on one or more cylinders
- Intermittent spark
- Difficult starting
- Engine misfiring
- Engine cutting out
- Loss of ignition when hot
- Poor acceleration
- Irregular engine operation
Important
These symptoms do NOT automatically mean the CDI is faulty.
Similar symptoms can be caused by the stator, trigger, ignition coils, stop circuit, wiring or poor electrical connections.
Proper diagnosis is recommended before replacing the CDI.
Before Replacing Your CDI / Switch Box
If your engine has an ignition problem, we recommend checking the complete ignition system before installing a replacement CDI.
Check:
- Stator output
- Trigger output
- Ignition coils
- Spark plugs
- Spark plug leads
- Stop / kill circuit
- Engine earth / ground connections
- CDI wiring
- Electrical connectors
- Burnt or corroded terminals
- Damaged wiring
A fault elsewhere in the ignition system can produce symptoms similar to a failed CDI and may damage a replacement component.
Product Features
- Marine-grade aftermarket CDI unit
- CDI ignition module
- Power pack
- Switch box
- Suitable for selected Mercury outboards
- Suitable for selected Mariner outboards
- 75 HP
- 90 HP
- Selected 65 Jet
- Selected 95 SportJet
- 2 Stroke
- 3 Cylinder
- 3-bolt mounting arrangement
- Replacement for 18495A10
- Replacement for 18495A12
- Replacement for 18495A15
- Replacement for 18495A18
- Replacement for 18495A19
- Replacement for 18495A26
- Cross-reference CDI 114-4953
- Direct replacement for compatible applications
- New aftermarket ignition component
Aftermarket Replacement Part
This is a high-quality marine-grade aftermarket replacement part.
It is not a genuine Mercury, Mariner or Quicksilver component.
OEM manufacturer names and part numbers are provided for identification and compatibility reference only.
The component is designed as a replacement for compatible Mercury / Mariner applications using the:
18495A26 / 114-4953 3-Cylinder Switch-Box Family
What's Included
1 × CDI Unit / Power Pack / Switch Box
New aftermarket replacement component.
Buyer Responsibility
It is the buyer's responsibility to confirm compatibility before purchasing.
Please check:
- Mercury / Mariner engine
- Engine horsepower
- 2 Stroke
- 3 Cylinder
- Complete engine serial number
- Original CDI part number
- Electrical connections
- Mounting arrangement
If you are unsure, please send SSI Marine:
Engine horsepower + complete serial number + clear picture of your existing CDI and connections
Our technical team will be happy to help identify the correct ignition unit.
