PRODUCT DETAILS

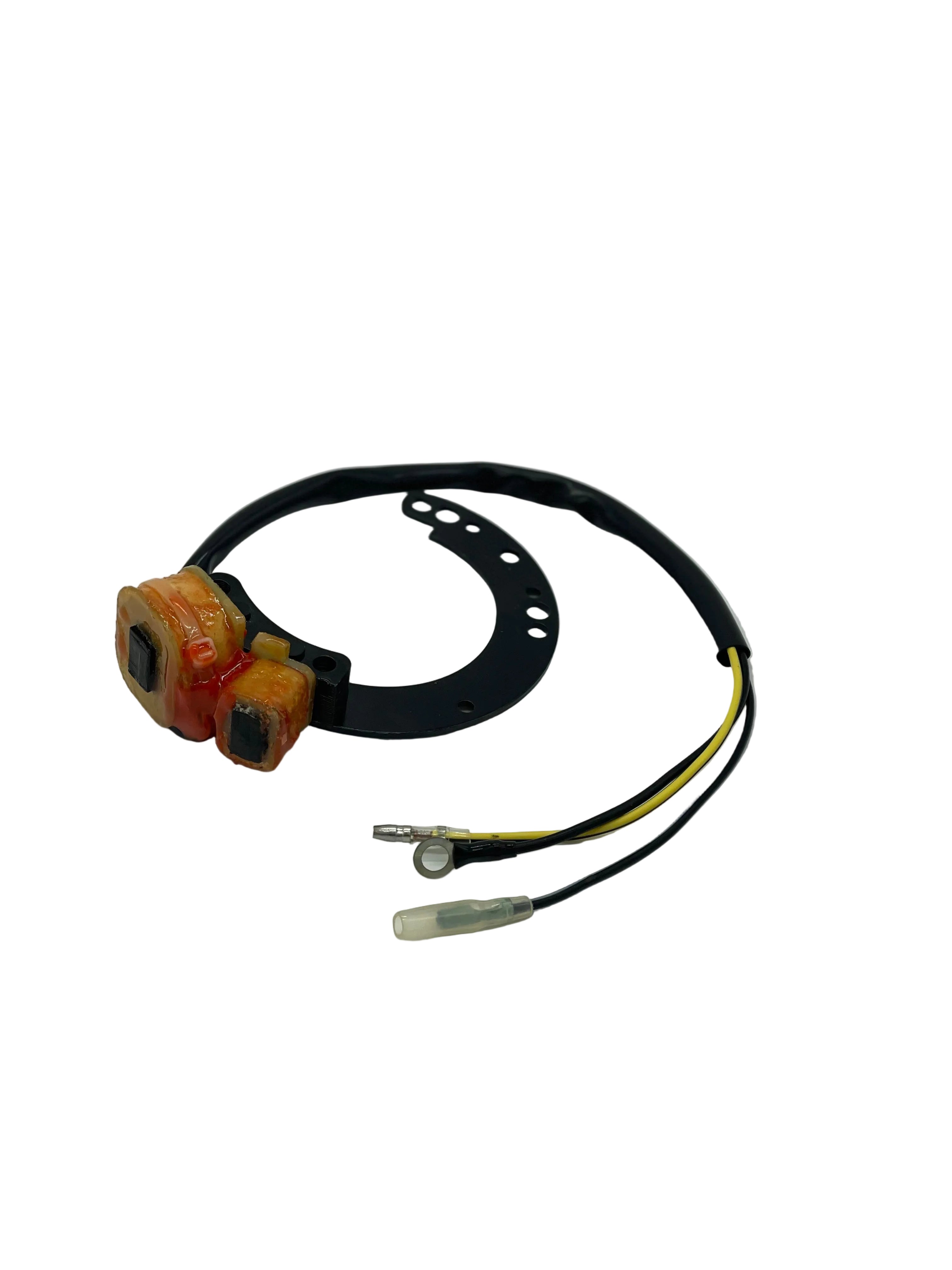

Stator Assembly for Mercury & Mariner Outboards
High-quality marine-grade aftermarket stator assembly for selected Mercury and Mariner 6 HP to 25 HP 2-cylinder 2-stroke outboards.
Replacement for Mercury / Mariner 86617A20 and earlier superseded 86617A-series stators.
Fits Selected Mercury / Mariner Outboards
Selected 2-cylinder 2-stroke applications including:
- 6 HP
- 8 HP
- 9.9 HP
- 10 HP
- 15 HP
- 18 HP
- 20 HP
- 25 HP
Also used on selected 20 Jet, 25XD, Marathon, Sea Pro and Super 15 applications depending on serial number.
Important
Fitment varies considerably by model and serial number.
Do not order by horsepower alone.
Replaces Mercury / Mariner Part Numbers
- 86617A2
- 86617A3
- 86617A5
- 86617A9
- 86617A11
- 86617A13
- 86617A20
Additional Cross References
- CDI Electronics 174-6617K1
- Sierra 18-5863
- Sierra 18-5864
Mercury 86617A20 supersedes the earlier 86617A2/A3/A5/A9/A11/A13 stator assemblies.
OEM part numbers are used for identification and compatibility reference only.
⚠️ Important – Check Before Ordering
This stator is for selected Mercury / Mariner 2-cylinder 2-stroke engines.
Please check:
- Engine horsepower
- Complete serial number
- Original stator part number
- Electrical connections
- Wiring configuration
Ideally, your original stator should cross-reference to 86617A20 or one of the superseded numbers above.
Mercury used different stators across similar horsepower engines, so appearance alone does not confirm compatibility.
If unsure, send SSI Marine your engine horsepower + complete serial number + picture of the existing stator/connections.
Product Features
- Marine-grade aftermarket stator
- For selected Mercury / Mariner outboards
- 6–25 HP applications
- 2 Stroke
- 2 Cylinder
- Replacement for 86617A20
- Direct replacement for compatible applications
- New aftermarket component
Buyer Responsibility
It is the buyer's responsibility to confirm compatibility before purchasing.
Electronic ignition components should be correctly diagnosed before replacement, as faults elsewhere in the ignition system can produce similar symptoms.
Why Buy From SSI Marine?
- Marine-grade aftermarket & OEM-spec parts
- Workshop-tested products
- More than 10 years supplying outboard parts
- Same-day dispatch before 1 PM Monday–Friday
- Royal Mail Tracked 24
- UK stock
- Collection from Leigh, Greater Manchester
- Technical support from experienced outboard specialists
