40 HP 45 HP 50 HP 75 HP 80 HP 85 HP 100 HP 115 HP 125 HP Mercury Mariner Outboard CDI Switch Box 332-5772A7
PRODUCT DETAILS

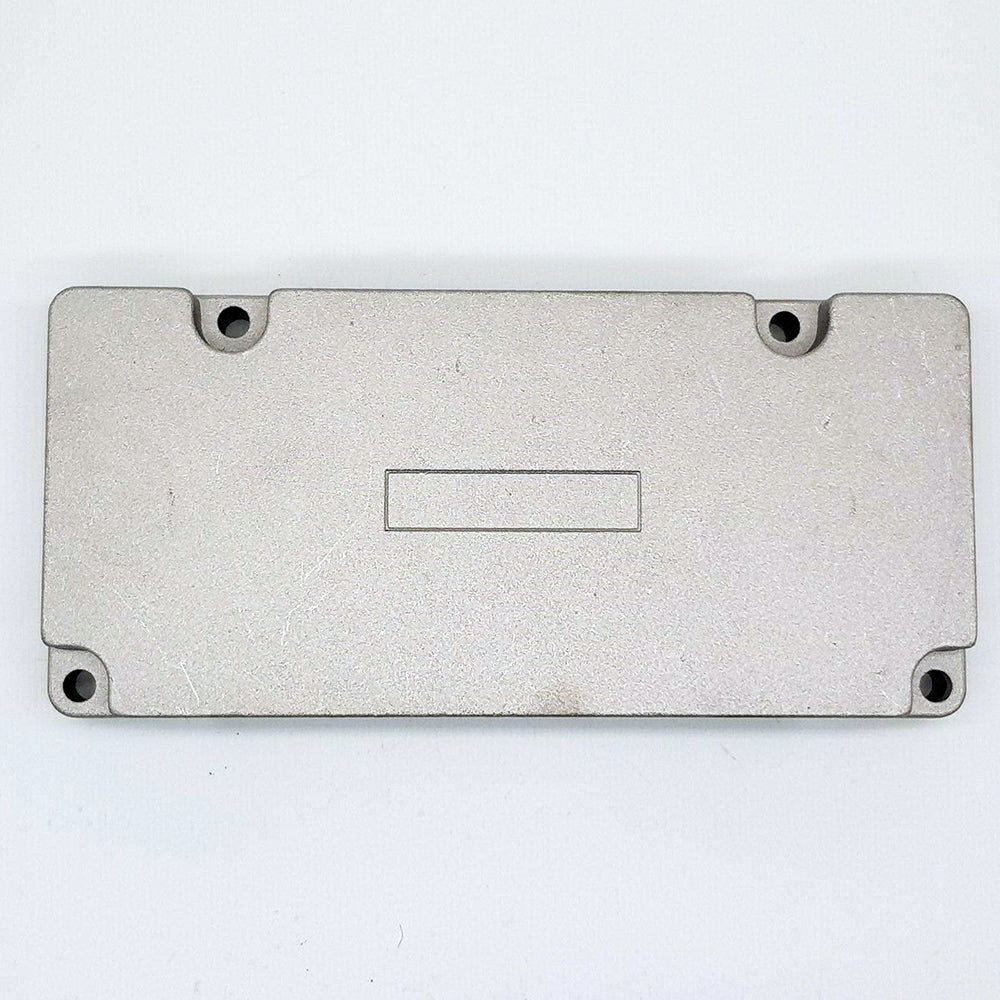

CDI Unit / Switch Box / Power Pack for Mercury & Mariner Outboards
High-quality marine-grade aftermarket CDI switch box / power pack for selected Mercury and Mariner 4-cylinder 2-stroke outboards.
Suitable for selected:
40 HP, 45 HP, 50 HP, 75 HP, 80 HP, 85 HP, 100 HP, 115 HP and 125 HP
Also used on selected Jet applications.
Replacement for the Mercury 332-5772A switch-box family.
Fitment
Selected Mercury / Mariner 4-Cylinder 2-Stroke Models
| HP | Serial Number / Application |
|---|---|
| 40 HP | 0C159200–0G589999 |
| 45–50 HP | 5531630 & Up |
| 75 HP | 6432901 & Up |
| 80 HP | 4831999–6432900 |
| 80 Jet | 0D283222–0G437999 |
| 85 HP | 4366802–4831998 |
| 100 HP | 0B209468–0G437999 |
| 115 HP | 0C100000–0G437999 |
| 125 HP | 0D283222–0G437999 |
Approximate application data also identifies:
-
40 HP – 1989–1997
-
45 HP – 1981–1989
-
50 HP – 1976–1985
-
75 HP – 1984–1988
-
80 HP – 1978–1983
-
85 HP – 1976–1977
-
100 HP – 1988–1996
-
115 HP – 1989–1997
-
125 HP – 1994–1996
⚠️ Year ranges are a guide only. Always check the serial number and original switch-box number.
Replaces Mercury / Mariner Part Numbers
-
332-5772
-
332-5772A1
-
332-5772A2
-
332-5772A3
-
332-5772A4
-
332-5772A5
-
332-5772A7
Additional Cross References
-
300-03107
-
CDI Electronics 114-5772
-
Sierra 18-5881
-
Sierra 18-5881-1
-
Mallory 9-25104
OEM part numbers are used for identification and compatibility reference only.
Product Features
-
CDI ignition unit / switch box / power pack
-
Mercury / Mariner applications
-
4 Cylinder
-
2 Stroke
-
Selected 40–125 HP applications
-
Marine-grade aftermarket replacement
-
Replacement for 332-5772A7
-
Cross-reference 300-03107
-
New
⚠️ Important – Check Compatibility
Please do not order by horsepower or appearance alone.
Mercury / Mariner used different switch boxes depending on engine model and serial number.
Before ordering, check:
-
Engine horsepower
-
4-cylinder configuration
-
Complete serial number
-
Original switch-box part number
-
Wiring and electrical connections
If the part looks the same as yours, this does not always mean it is the correct CDI for your outboard.
If unsure, send SSI Marine your engine horsepower + complete serial number + picture of the existing CDI and we will help check compatibility.
Buyer Responsibility
It is the buyer's responsibility to confirm compatibility before purchasing.
Correct diagnosis is recommended before replacing electronic ignition components, as stator, trigger, coil, wiring or kill-circuit faults can produce similar symptoms.
Why Buy From SSI Marine?
-
Marine-grade aftermarket & OEM-spec parts
-
Workshop-tested products
-
More than 10 years supplying outboard parts
-
Same-day dispatch before 1 PM Monday–Friday
-
Royal Mail Tracked 24
-
UK stock
-
Collection from Leigh, Greater Manchester
-
Technical support from experienced outboard specialists
