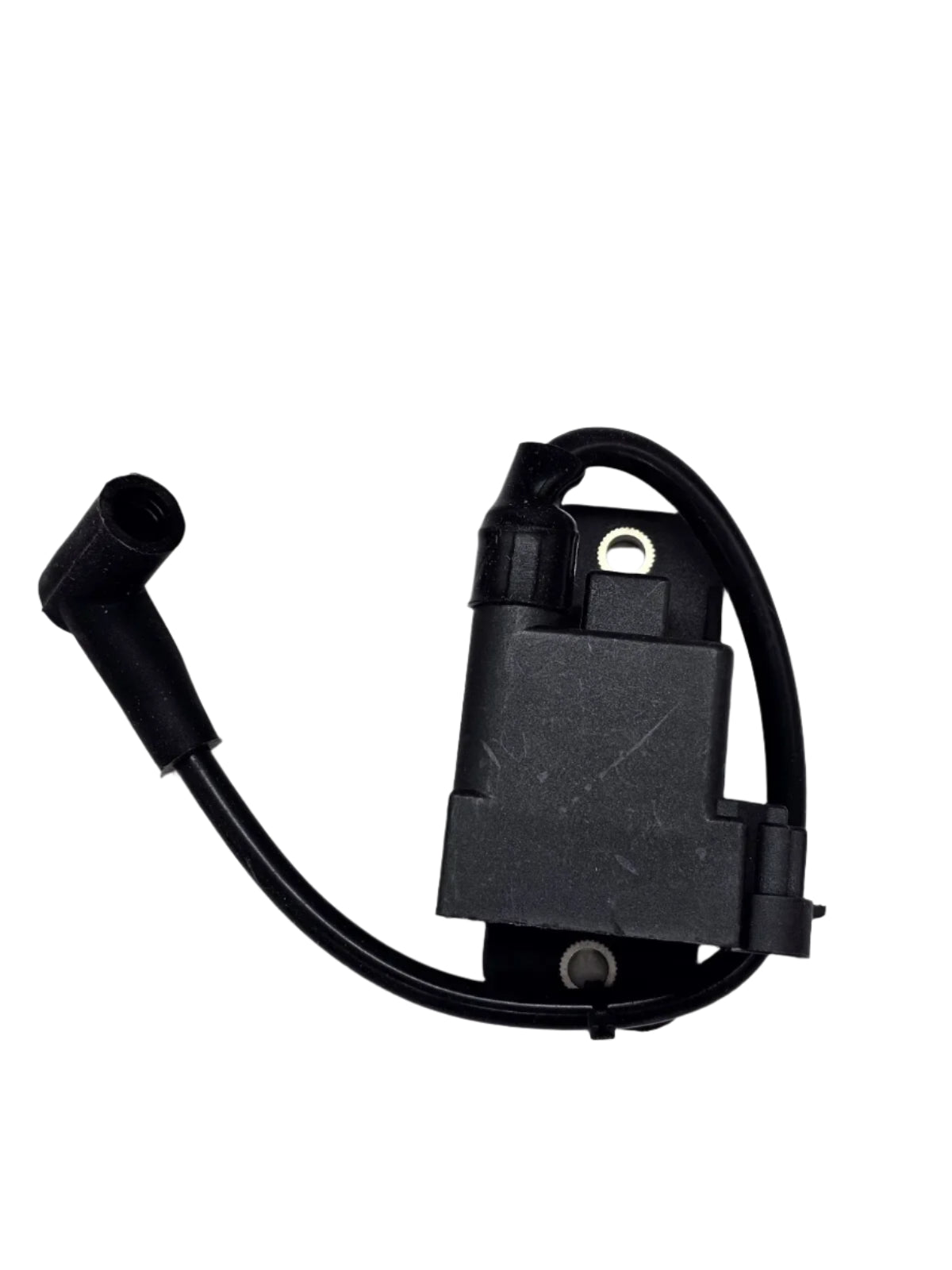

CDM Ignition Coil / Module for Mercury & Mariner Outboards

High-quality marine-grade aftermarket CDM ignition module for selected Mercury and Mariner 2-stroke outboards.

The CDM combines the ignition coil and CDI electronics in one unit and is used across a wide range of Mercury / Mariner engines.

Suitable for selected 30 HP–250 HP applications, including 2, 3, 4 and 6-cylinder engines, depending on model and serial number.

Fitment

Fits selected Mercury / Mariner 2-stroke outboards, primarily from the mid-1990s onwards.

Applications include selected:

• 30 HP

• 40 HP

• 50 HP

• 55 HP

• 60 HP

• 65 Jet

• 75 HP

• 80 Jet

• 90 HP

• 100 HP

• 115 HP

• 120 SportJet

• 125 HP

• 200 HP EFI

• 225 HP

• 250 HP

CDI Electronics identifies this CDM family for 2–6 cylinder Mercury and Force engines, while individual Mercury applications depend on model and serial number.

⚠️ Not every 30–250 HP Mercury / Mariner uses this CDM.

Always check the original part number.

Replaces Mercury / Mariner Part Numbers

• 827509A1

• 827509A3

• 827509A4

• 827509A7

• 827509A9

• 827509A10

• 827509T7

Additional Cross References

• CDI Electronics 114-7509

• Sierra 18-99161

• Mallory 9-23202

• Recmar REC827509A10

CDI Electronics confirms the 114-7509 replacement against these Mercury 827509-series references.

Important – A10 vs T7

On some Mercury engines, 827509A10 and 827509T7 can be used in different cylinder positions on the same engine.

For example, Mercury application information shows 827509A7 superseding to 827509T7, while 827509A4 supersedes to 827509A10.

Therefore, do not replace a CDM based only on appearance.

Check the number fitted to the individual cylinder position or verify using the engine serial number.

Product Features

• CDM – Capacitor Discharge Module

• Combined CDI / ignition coil unit

• Mercury / Mariner 2-stroke applications

• Selected 2, 3, 4 & 6-cylinder engines

• Marine-grade aftermarket replacement

• Includes high-tension spark plug lead

• Replacement for 827509A10 / 827509T7

• New

What's Included

1 × CDM Ignition Module / Coil

This listing is for ONE CDM only.

Multi-cylinder engines require one CDM per cylinder, but the correct CDM reference should be checked before ordering multiple units.

⚠️ Important – Check Compatibility

Please check:

• Engine horsepower

• Complete serial number

• Original CDM part number

• Cylinder position where applicable

• Electrical connector

If the part looks the same as yours, this does not always mean it is the correct CDM for your outboard.

If unsure, send SSI Marine your engine horsepower + complete serial number + existing CDM number and we will help check compatibility.

Buyer Responsibility

It is the buyer's responsibility to confirm compatibility before purchasing.

Correct ignition diagnosis is recommended before replacing a CDM, as stator, trigger, wiring or other ignition faults can cause similar symptoms.
