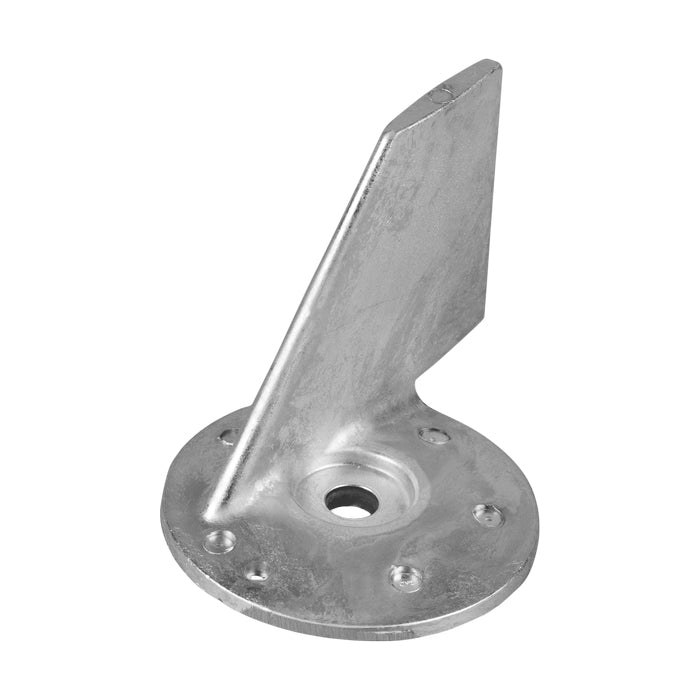

40–70 HP Johnson Evinrude Outboard Trim Tab Anode 5031536 55125-95500 – Zinc / Aluminium
PRODUCT DETAILS
Marine-grade aftermarket trim tab sacrificial anode for selected Johnson and Evinrude 40, 50 and 70 HP 4-stroke outboard engines.
Designed to protect the gearbox and lower unit against galvanic corrosion while retaining the original trim tab arrangement.
Replaces Johnson Evinrude part number 5031536 and corresponds to Suzuki 55125-95500.
Available in Zinc or Aluminium.
Choose Your Anode Material
-
Zinc: Suitable for saltwater use.
-
Aluminium: Suitable for saltwater and brackish water applications.
Fitment
Johnson / Evinrude 4-Stroke Outboards
-
40 HP – Selected 1999–2006 models
-
50 HP – Selected 1999–2006 models
-
70 HP – Selected 1998–2000 models
Suzuki Equivalent Applications
This is the same trim tab anode as Suzuki 55125-95500, used on selected:
4-Stroke Outboards
-
DF40 – 40 HP: 1999–2010
-
DF50 – 50 HP: 1999–2010
-
DF40A – 40 HP: 2010 onwards
-
DF50A – 50 HP: 2010 onwards
-
DF60A – 60 HP: 2010 onwards
2-Stroke Outboards
-
DT40 – 40 HP: Selected models
-
DT55 – 55 HP: Selected models
-
DT60 – 60 HP: Selected models
-
DT65 – 65 HP: Selected models
-
DT75 – 75 HP: Selected models
-
DT85 – 85 HP: Selected models
Important: Not every engine within these horsepower ranges uses this trim tab. Please check the original part number and mounting arrangement.
Replaces Part Numbers
Johnson / Evinrude / OMC
-
5031536
-
05031536
Suzuki
-
55125-95500
-
55125-95500-000
Aftermarket References
-
Tecnoseal 00931 – Zinc
-
Tecnoseal 00931AL – Aluminium
-
CM5512595500 – Zinc
-
CM5512595500A – Aluminium
OEM part numbers are used for identification purposes only.
Product Details
-
Trim tab / gearbox sacrificial anode
-
Available in Zinc or Aluminium
-
Suitable for selected Johnson / Evinrude 4-stroke outboards
-
Also suitable for selected Suzuki outboards
-
Marine-grade aftermarket replacement
-
Helps protect the lower unit against galvanic corrosion
-
Price is for ONE anode
Approximate Dimensions
-
Overall length: 70 mm
-
Height: 50 mm
-
Base diameter: 61 mm
-
Mounting hole diameter: 9 mm
-
Recess diameter: 20 mm
Dimensions are approximate and may vary slightly between aftermarket manufacturers.
Package Includes
1 × Trim Tab Anode
Supplied in your selected material:
-
Zinc
-
Aluminium
Mounting bolt is not included unless otherwise specified.
Important Compatibility Information
Before ordering, please check:
-
Exact engine model and production year
-
Engine model / serial number
-
Original anode part number
-
Trim tab shape and dimensions
-
Mounting hole and gearbox configuration
If the part looks the same as yours, this does not always mean it is the correct part for your outboard.
If unsure, please contact SSI Marine before purchasing.
Why Buy From SSI Marine?
-
Workshop-tested aftermarket & OEM-spec parts
-
UK stock
-
Same-day dispatch before 1 PM Monday–Friday
-
Royal Mail Tracked 24
-
Collection available from Leigh, Greater Manchester
-
Technical support available
Buyer Responsibility
Please confirm compatibility with your exact engine model, year, serial number and gearbox before purchase.
