PRODUCT DETAILS

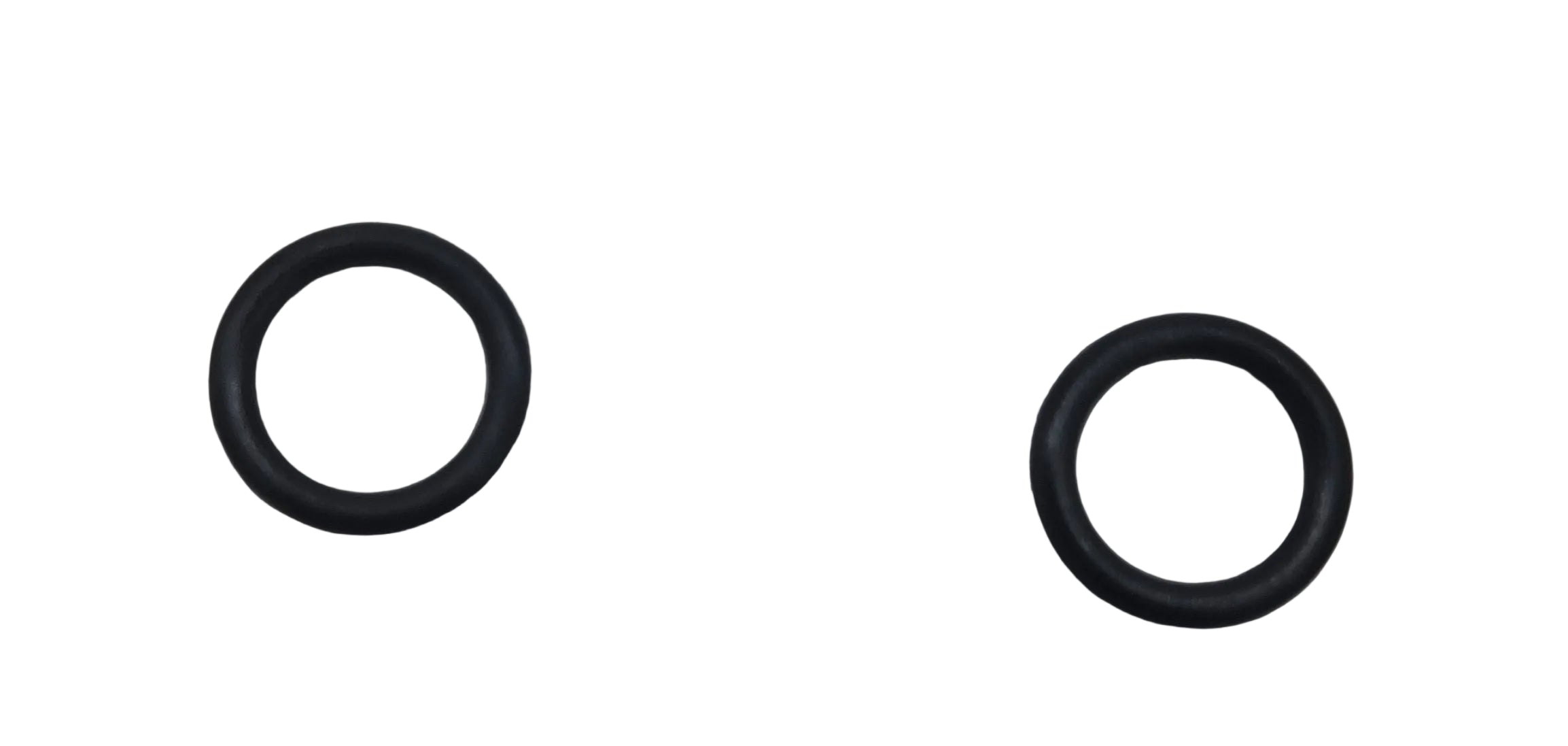

Gear Oil Drain & Level Plug O-Ring Gasket Set for Honda Outboards
Premium-quality aftermarket gear oil drain plug and oil level/check plug O-ring seals for selected Honda 4-stroke outboard engines.
These small seals are fitted to the gearbox oil drain / level plugs and should be inspected when changing the lower-unit gear oil.
Designed as replacements for Honda part number 91301-ZW4-003.
Honda identifies this part as an O-Ring, 6.9 × 1.45 mm, and Honda gearcase diagrams show it fitted to the gearbox oil plug locations.
Fits Selected Honda Outboards
Suitable for a wide range of Honda 4-stroke outboards, including selected:
- 8 HP
- 10 HP
- 15 HP
- 20 HP
- 25 HP
- 30 HP
- 40 HP
- 50 HP
- 60 HP
- 75 HP
- 80 HP
- 90 HP
- 100 HP
- 115 HP
- 130 HP
- 135 HP
- 150 HP
- 175 HP
- 200 HP
- 225 HP
- 250 HP
Parts references list 91301-ZW4-003 across Honda 8–250 HP 4-stroke applications, with many applications from 2004 onwards.
Examples of Compatible Model Families
BF8, BF10, BF15, BF20, BF25, BF30, BF40, BF50, BF60, BFP60, BF75, BF80, BF90, BF100, BF115, BF130, BF135, BF150, BF175, BF200, BF225 & BF250
Replaces Honda Part Number
- 91301-ZW4-003
- 91301ZW4003
- HZW491301003
O-Ring Size
6.9 × 1.45 mm
OEM part numbers are used for identification and reference purposes only.
Product Features
- Gear oil drain plug O-ring / gasket
- Gear oil level / check plug seal
- For selected Honda outboard engines
- 8 HP–250 HP
- 4-stroke applications
- Size: 6.9 × 1.45 mm
- Ideal for routine gearbox oil servicing
- Helps provide the correct seal around the gear oil plugs
- Marine-grade quality aftermarket part
- Manufactured to OEM specifications
- Direct replacement for the corresponding OEM application
- New replacement parts
Important – Recommended During Gear Oil Changes
The gear oil drain and level plug seals are inexpensive service items but are important for maintaining a proper seal in the lower unit.
Honda parts diagrams show applications where two 91301-ZW4-003 O-rings are used in the gearcase, making them suitable for replacing the seals during a gearbox oil change.
Important – Please Check Compatibility
Please do not order by horsepower or appearance alone.
Honda has used different gearbox arrangements across its outboard range.
Before purchasing, please check:
- Exact engine model
- Engine year
- Gearcase arrangement
- Existing drain plug seal
- Original Honda part number
For the safest identification, check that your engine requires:
91301-ZW4-003
If the part looks the same as yours, this does not always mean it is the correct one for your outboard.
If you are unsure, please send us your engine model and serial number before purchasing and our technical team will be happy to check compatibility.
